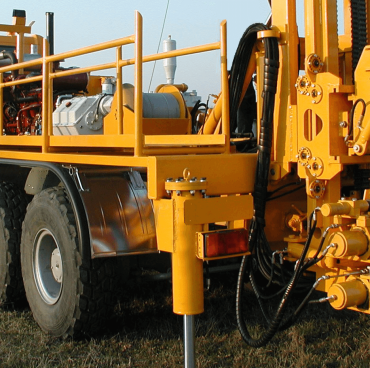

image-009

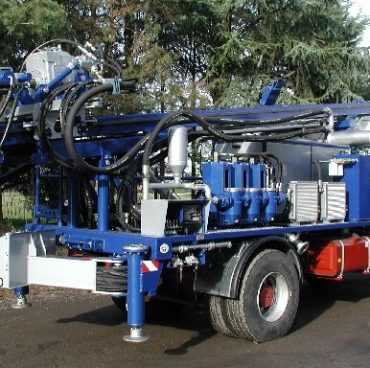

image-008

Product Description

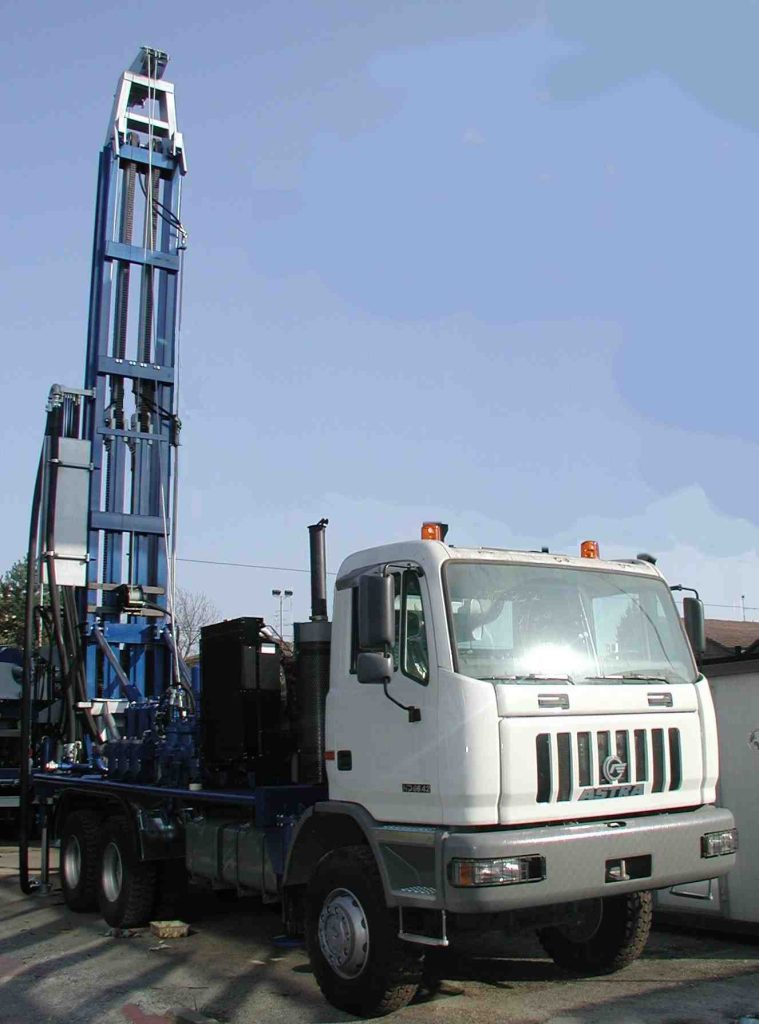

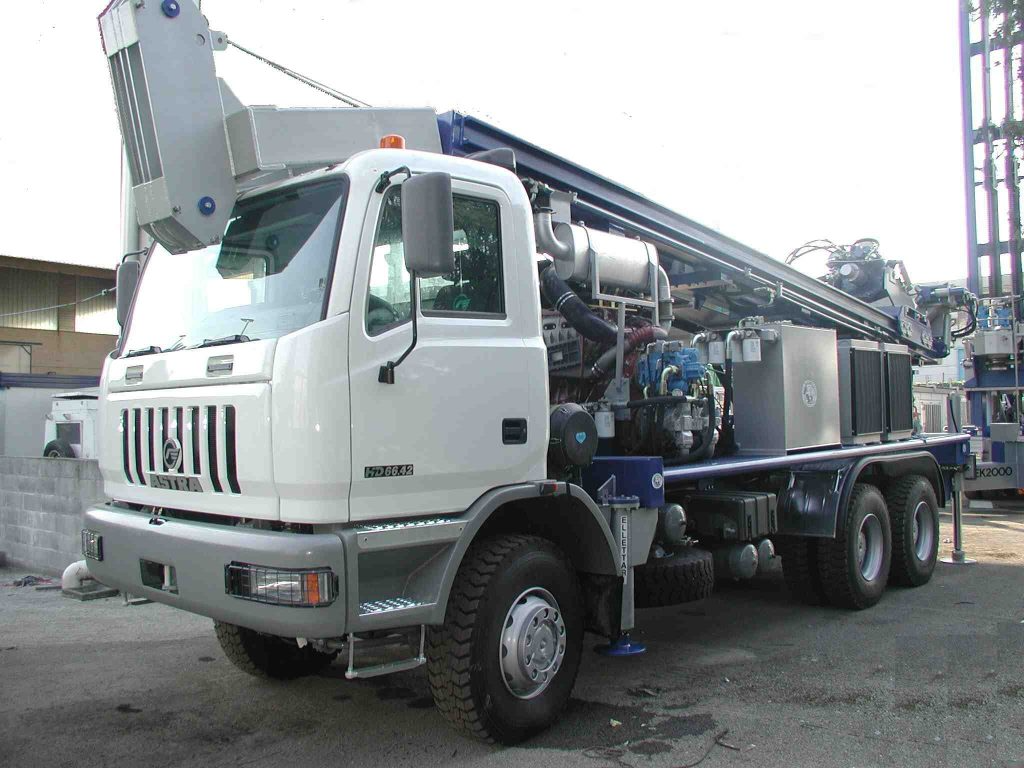

The EK650 hydraulic drill rig on truck has relatively small size and high power. This machine is ideal for performing water well research, geological findings, mining research and core drilling operations in every soils . It’s able to operate all rotary drilling systems: rotation with nucleus destruction with rock bit, with down hole hammers, rotary direct and reverse circulation and with particular core equipment. Together with a wide range of optional, it can be prepared in according to the customer’s requirements and the works to carry out.

Technical data

DRILLING CAPACITY
  • Hole diameter 10”/17” ½ (245-450 mm)
  • Depth 600 m and more
MAST
  • Height 11 m
    Working stroke 6,6 m
    Drilling pipes length 6 m
MAST EXTENSION
  • For  9 m casing
PULL – DOWN
  • Pull 30 tons
  • Thrust 20 tons
ROTARY HEAD
  • Max torque2000 Kgm
  • Max speed 300 rpm
  • 5 mechanical ratios
ROTARY HEAD (OPTIONAL)
  • Max torque2300 Kgm
  • Max speed 300 rpm
  • 3 mechanical ratios
AUXILIARY ENGINE
  • Diesel 200-358 cv
HYDRAULIC WINCH
  • Pull 6000 kg
AUXILIARY WINCH
  • Pull 2000 kg
SINGLE/DOUBLE CLAMP
  • Max diameters 350/480/550 mm
  •  Mechanical clamp diam. 550 mm
  • Hydraulic centering device
  • Unsrew hydraulic piston
MUD PUMP (optional)
  • Duplex or triplex max delivery 800/2200 L/min
FOAM / WATER PUMP
  • Capacity 80 L/min – max pressure 50 bar
COMPRESSOR
  • Capacity 8000/25000 L/min – Press. 10/25 bar
TOTAL WEIGHT
  • Kg 15000/18000

Dimensional data

Specification shown are only indicative, manufacturer reserves the right to alter them if necessary without prior notice.
