E50
- WATER RESEARCH
- GEOLOGICAL FINDINGS
- MINING RESEARCH
- CORE DRILLING

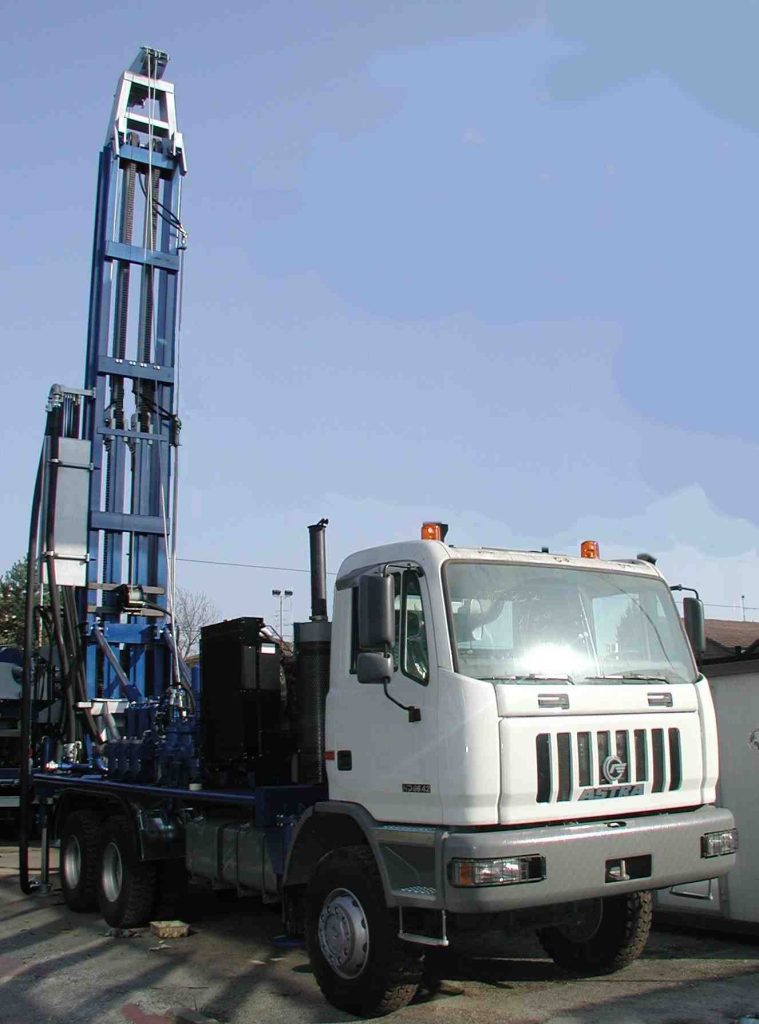

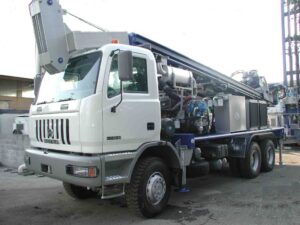

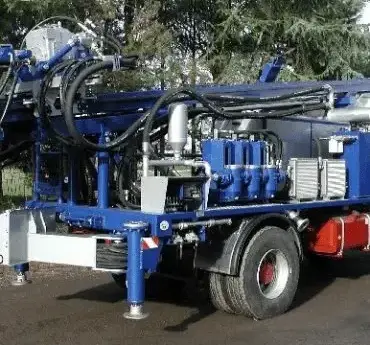

The EK650 hydraulic drill rig on truck has relatively small size and high power. This machine is ideal for performing water well research, geological findings, mining research and core drilling operations in every soils . It’s able to operate all rotary drilling systems: rotation with nucleus destruction with rock bit, with down hole hammers, rotary direct and reverse circulation and with particular core equipment. Together with a wide range of optional, it can be prepared in according to the customer’s requirements and the works to carry out
| MODEL | E50 |
|---|---|

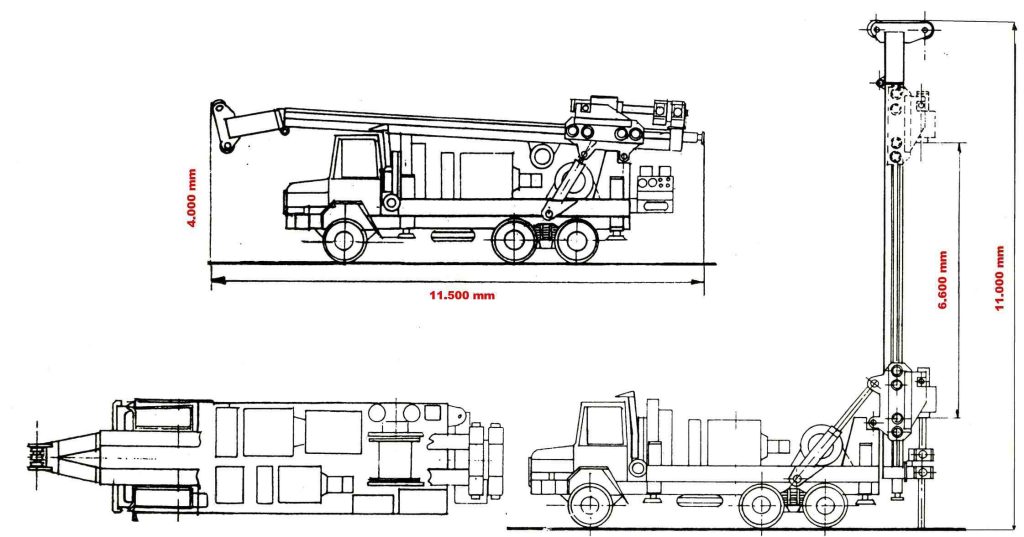

| MAST | Height 11 m |
| Working stroke 6,6 m | |
| Drilling pipes length 6 m | |
| MAST EXTENSION | For 9 m casing |
| PULL – DOWN | Pull 20 tons |
| Thrust 12 tons | |
| ROTARY HEAD | Max torque1500 Kgm |
| Max speed 500 rpm | |
| 5 mechanical ratios | |
| ROTARY HEAD (OPTIONAL) | Max torque1900 Kgm |
| Max speed 300 rpm | |
| 3 mechanical ratios | |
| AUXILIARY ENGINE | Diesel 170-300 cv |
| HYDRAULIC WINCH | Pull 5000 kg |
| AUXILIARY WINCH | Pull 1500 kg |
| SINGLE/DOUBLE CLAMP | Max diameters 350/480 mm |
| Mechanical clamp diam. 550 mm | |
| Hydraulic centering device | |
| Unsrew hydraulic piston | |

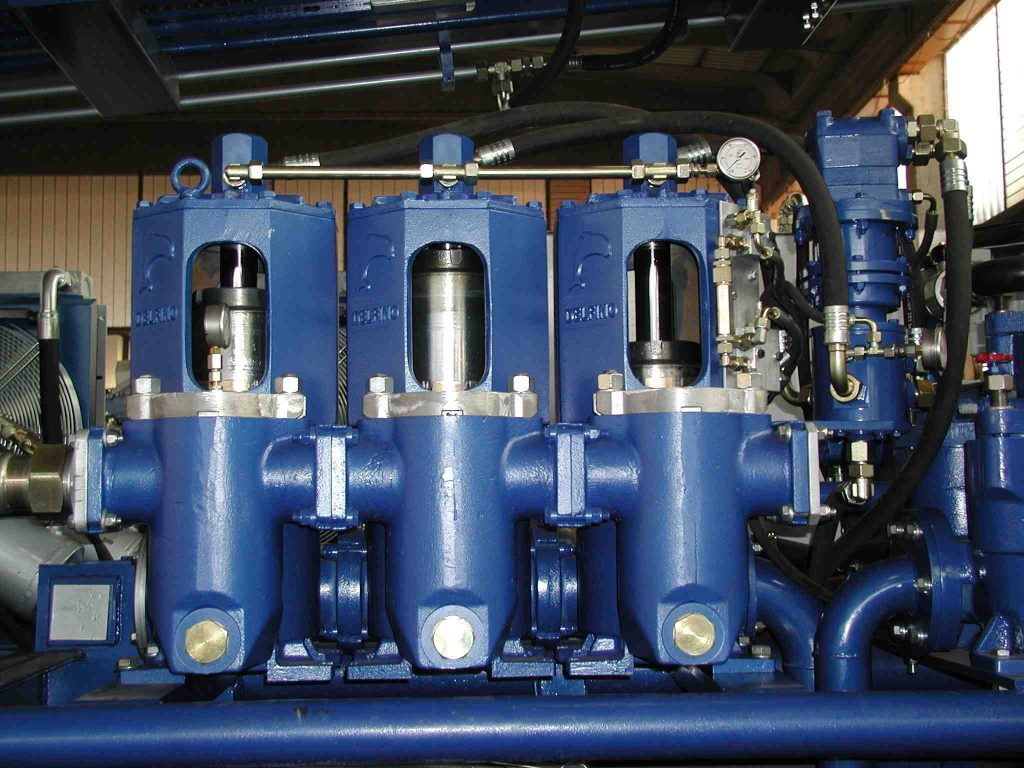

| MUD PUMP | Duplex or triplex max delivery 800/2200 L/min |
| FOAM / WATER PUMP | Capacity 80 L/min – max pressure 50 bar |
| COMPRESSOR | Capacity 8000/25000 L/min – Press. 10/25 bar |
| TOTAL WEIGHT | Kg 12000/15000 |
