Product Description

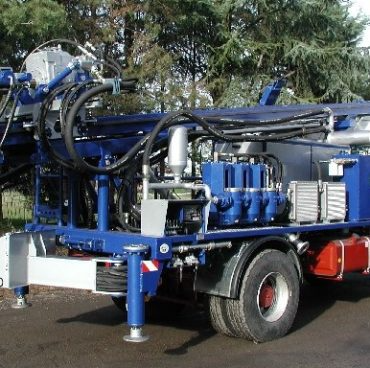

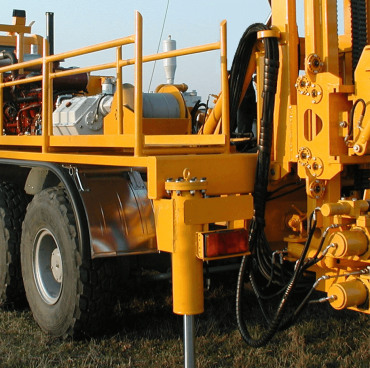

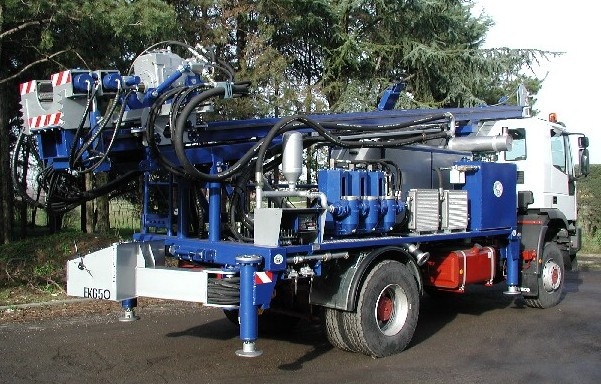

The E 20 hydraulic drill rig on truck has relatively small weight and high power. This machine is ideal for performing water well research, geological findings, mining research and core drilling operations in every soils . It’s able to operate all rotary drilling systems: rotation with nucleus destruction with rock bit, with down hole hammers, rotary direct and reverse circulation and with particular core equipment. Together with a wide range of optional, it can be prepared in according to the customer’s requirements and the works to carry out.

Technical data

MAST
  • Height 11 m
  • Working stroke 6,6 m
  • Drilling pipes length 6 m
MAST EXTENSION
  • For  9 m casing
PULL – DOWN
  • Pull 20 tons
  • Thrust 12 tons
ROTARY HEAD
  • Max torque1500 Kgm
  • Max speed 500 rpm
  • 5 mechanical ratios
ROTARY HEAD (OPTIONAL)
  • Max torque1900 Kgm
  • Max speed 300 rpm
  • 3 mechanical ratios
AUXILIARY ENGINE
  • Diesel 170-300 cv
HYDRAULIC WINCH
  • Pull 5000 kg
AUXILIARY WINCH
  • Pull 1500 kg
SINGLE/DOUBLE CLAMP
  • Max diameters 350/480 mm
  • Mechanical clamp diam. 550 mm
  • Hydraulic centering device
  • Unsrew hydraulic piston
MUD PUMP
  • Duplex or triplex max delivery 800/2200 L/min
FOAM / WATER PUMP
  • Capacity 80 L/min – max pressure 50 bar
COMPRESSOR
  • Capacity 8000/25000 L/min – Press. 10/25 bar
TOTAL WEIGHT
  • Kg 12000/15000

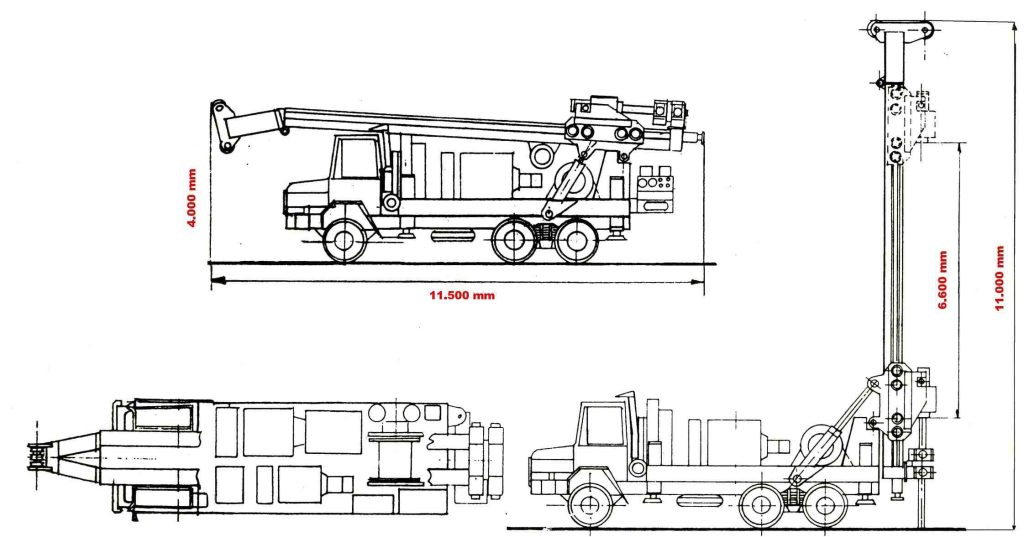

Dimensional data

Specification shown are only indicative, manufacturer reserves the right to alter them if necessary without prior notice.
