Product Description

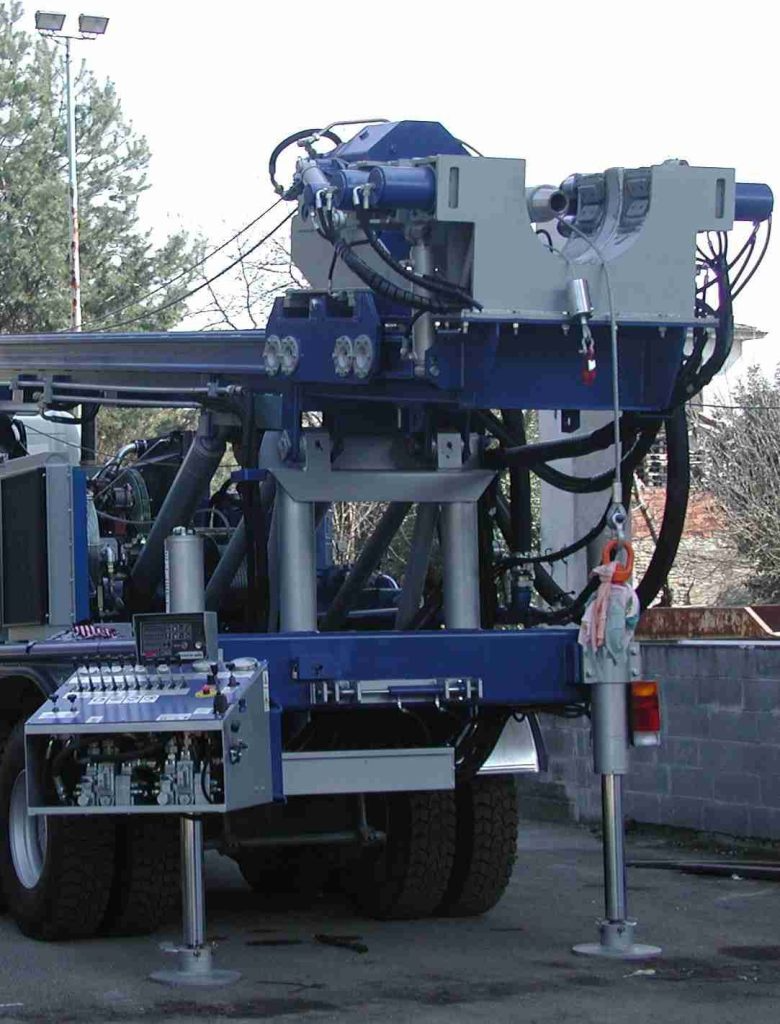

The E 30 hydraulic drill rig on truck has relatively small weight and high power. This machine is ideal for performing water well research, geological findings, mining research and core drilling operations in every soils . It’s able to operate all rotary drilling systems: rotation with nucleus destruction with rock bit, with down hole hammers, rotary direct and reverse circulation and with particular core equipment. Together with a wide range of optional, it can be prepared in according to the customer’s requirements and the
works to carry out.

Technical data

DRILLING CAPACITY
  • Hole diameter 6”/10” (150-250 mm)
  • Depth 150 m and more
MAST
  • Height 5,4/8,4 m
  • Working stroke 3,6/6,6 m
  • Drilling pipes lenght 3/6 m
MAST EXTENSION
  • For 6 or 9 m casing
PULL – DOWN
  • Pull 10 tons
  • Thrust 6 tons
ROTARY HEAD
  • Max torque1200 Kgm
  • Max speed 460 rpm
  • 5 gears
  • Side shifting device
  • Side shifting device and front reach 70°
AUXILIARY ENGINE
  • Diesel 160-200 cv
HYDRAULIC WINCH
  • Pull 3200 kg
AUXILIARY WINCH
  • Pull 1000 kg
SINGLE/DOUBLE CLAMP
  • Max diameters 250/350 mm
  • Mechanical clamp diam. 450 mm
  • Hydraulic centering device
  • Unsrew hydraulic piston

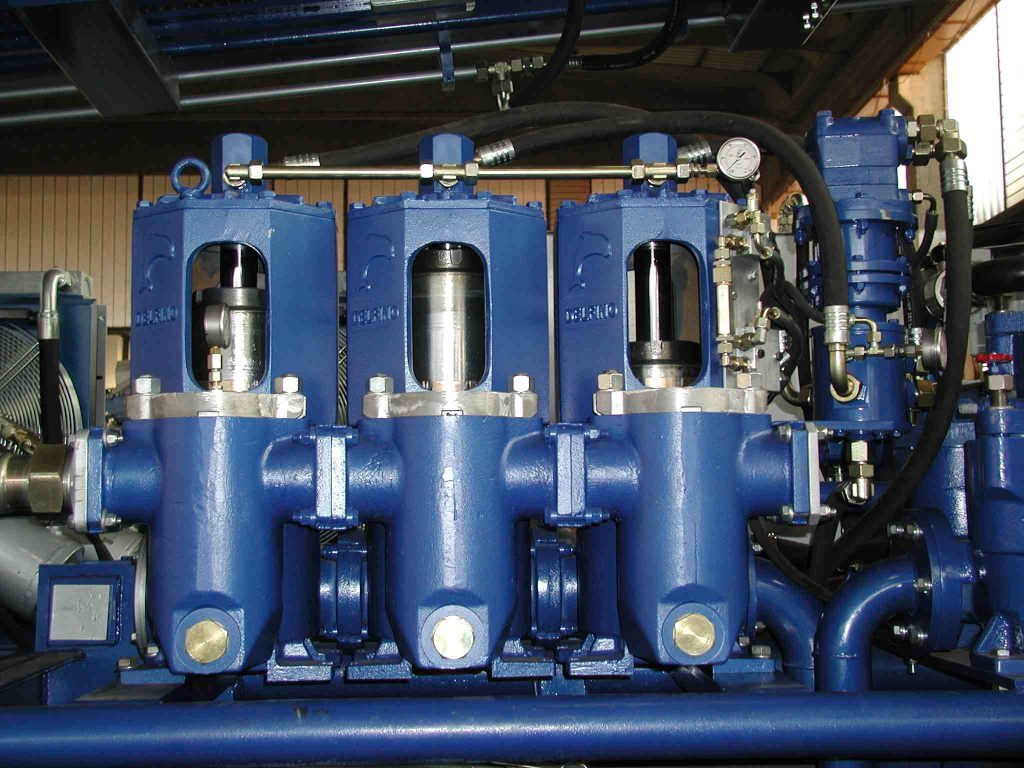

MUD PUMP
  • Duplex or triplex max capacity 800/1500 L/min
FOAM / WATER PUMP
  • Capacity 80 L/min – max pressure 50 bar
COMPRESSOR
  • Capacity 8000/25000 L/min – Press. 10/25 bar
TOTAL WEIGHT
  • Kg 12000/15000

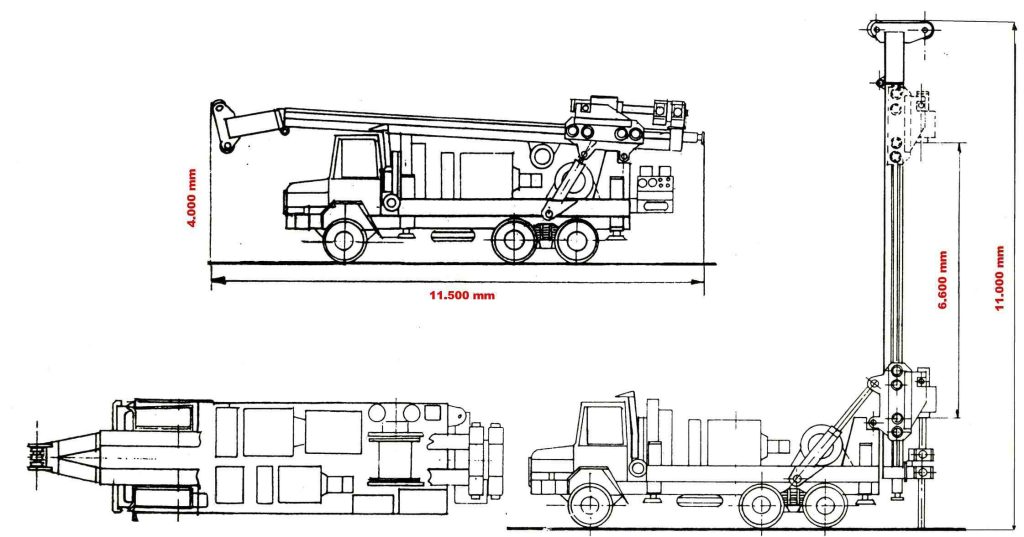

Dimensional data

Specification shown are only indicative, manufacturer reserves the right to alter them if necessary without prior notice.
