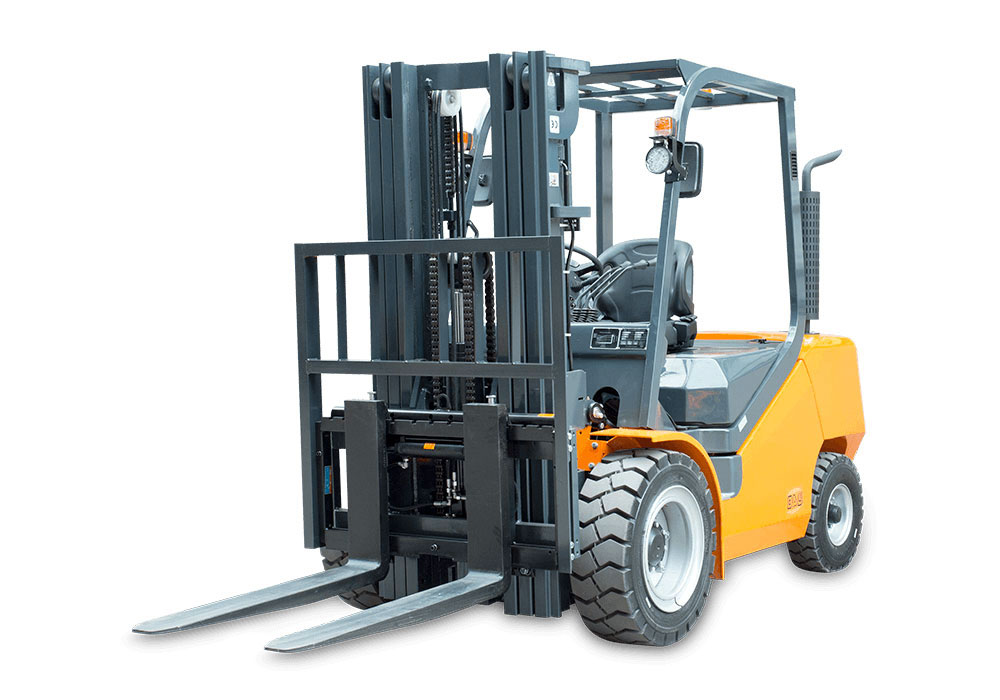

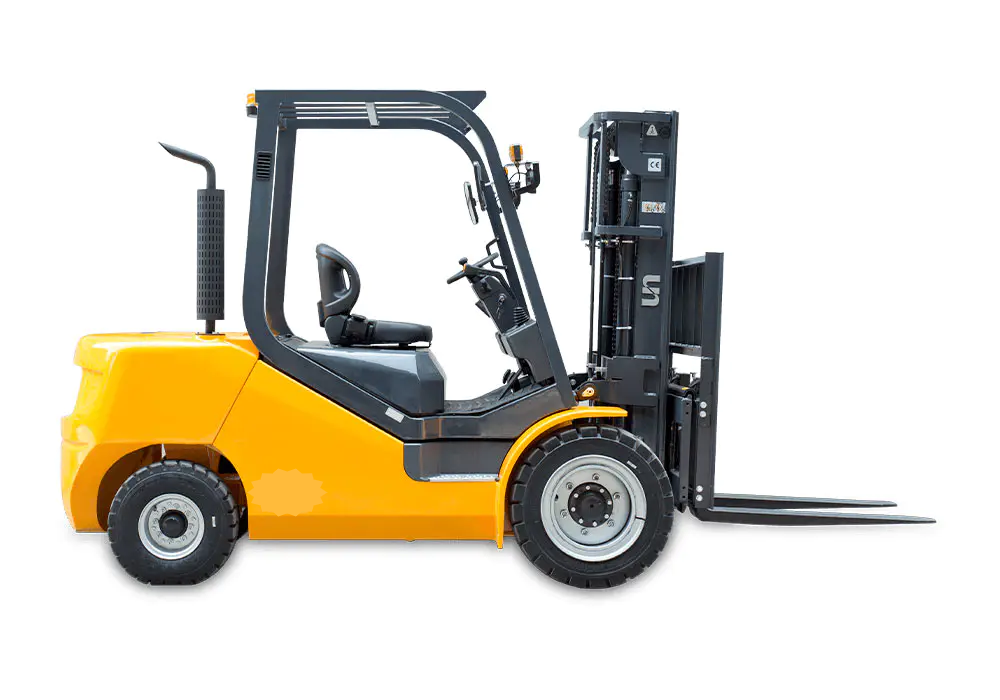

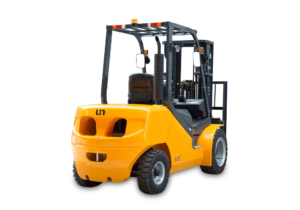

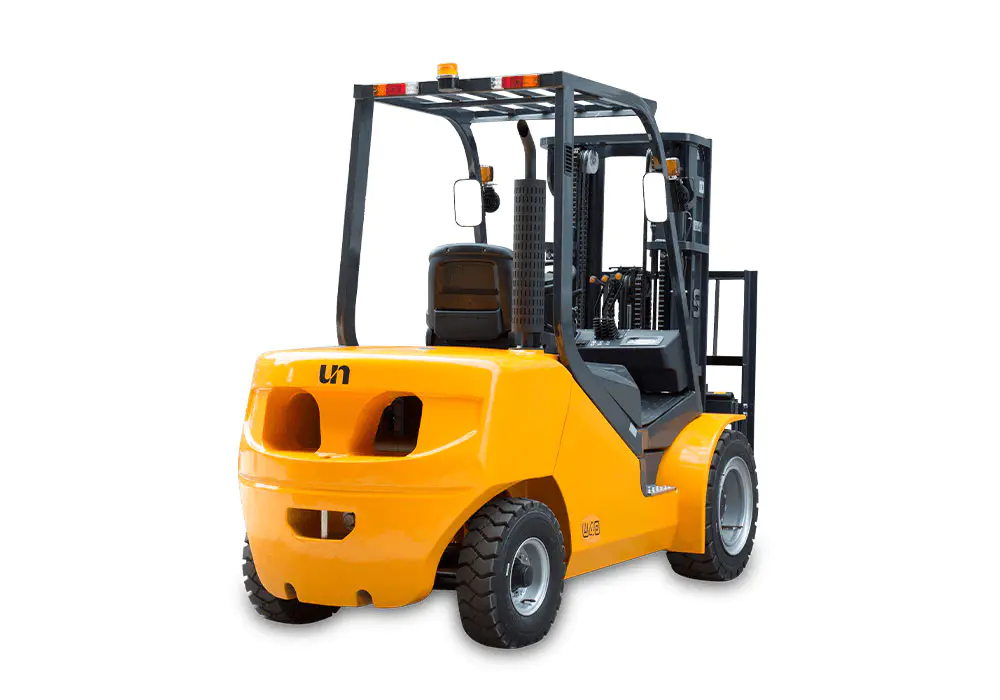

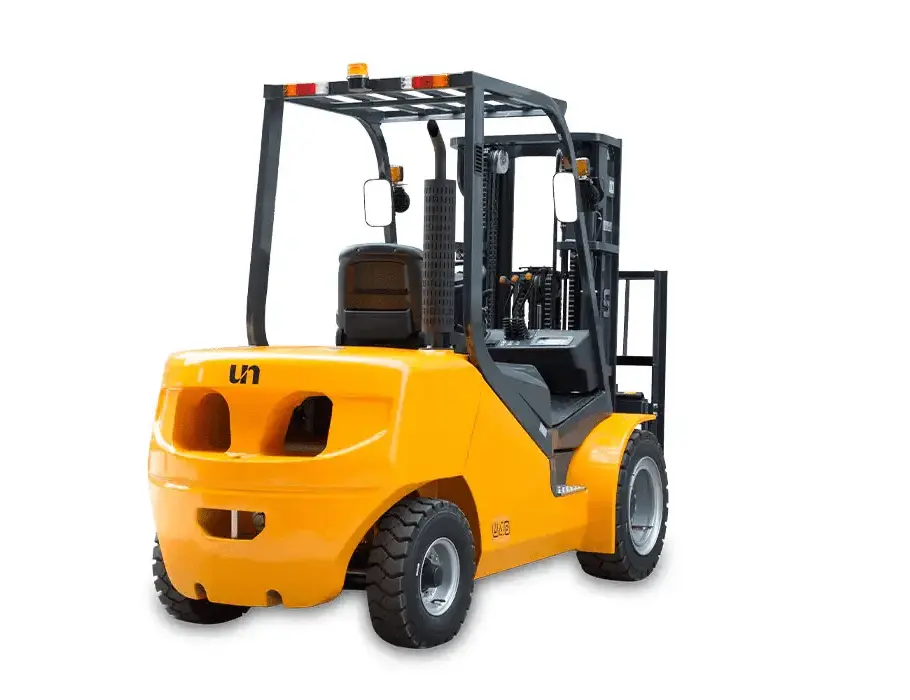

N Series Mini 4.0T Diesel Forklift

After many years’ improving and upgrading, 1.5T-mini 5.0T diesel forklift has become one of the best in China. It adopts leading design, manufacturing technology and reliable power train and hydraulic systems.

All models have been tested by the market that they can be trusted for all industries and get recognition from millions of clients across the worldwide.

Product Introduction

  • Scientific design and manufactured truck body combines superior power train makes the forklift outstanding in performance and operation. The power train includes the well-known engines like Isuzu, Mitsubishi, Yanmar, Kubota, Xinchai and Japanese level technology transmission.
  •  Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensures the high lifting and steering speed.
  • Advanced Cooling technology matching with large capacity radiator makes sure the forklift can work well even in hot area

Safety & Ergonomics

  • OPS, Seat switch ensures a safe operation.
  • Wide view mast can always give operator a good visibility.
  • Strong OHG protects the operator from any falling objects.
  • Suspension cabin with large foot space, adjustable steering wheel and comfortable seat.
  • Power train suspension is available as option.
General 1 Importer EES
2 Model FD40T-XNGA7 FD40T-XNJB2
3 Power Type Diesel
4 Rated Load Capacity Q(kg) 4000
5 Load Centre C(mm) 500
Characteristic & Dimension 6 Rated Lift Height H3(mm) 3000
7 Free Lift Height H2(mm) 150
8 Fork Size (L×W×T) mm 1070×150×50
9 Mast Tilt Angle (F/R, α°/β°) deg 6/12
10 Fork Overhang (Wheel Center to Fork Face) X1(mm) 485
11 Rear Overhang X2(mm) 585
12 Ground Clearance (Bottom of Mast) H7(mm) 130
13 Length to Face of Fork (Without Fork) L1(mm) 2970
14 Overall Width B1(mm) 1410
15 Mast Lowered Height H1(mm) 2175
16 Mast Extended Height (With Backrest) H4(mm) 4230
17 Overhead Guard Height H5(mm) 2235
18 Turning Radius (Outside) Wa(mm) 2675
19 Min.Aisle width for pallets Ast(mm) 2700
Performance 20 Travel Speed (No Load) km/h 20
21 Lifting Speed (Full Load) mm/sec 450
22 Lowering Speed  (Full Load) mm/sec 420
23 Max.Drawbar Pull (Full Load) KN ≥17
24 Max.Gradeability (Full Load) % 20
Chassis 25 Tyre (Front x 2) mm 250-15-16PR
26 Tyre (Rear x 2) mm 6.50-10
27 Front Tread B2(mm) 1160
28 Rear Tread B3(mm) 980
29 Wheelbase Y(mm) 1900
Weight 30 Total Weight kg 5470
31 Front Axle Weight Distribution (Full Load) kg 8540
32 Rear Axle Weight Distribution (Full Load) kg 930
33 Front Axle Weight Distribution (No Load) kg 2170
34 Rear Axle Weight Distribution (No Load) kg 3300
Power & Transmission 35 Battery V/Ah 12/90
36 Engine Model A498BPG-521  4JG2
37 Engine Manufacturer XINCHAI ISUZU
38 Rated Output / r.p.m. kw 45KW/2500 44.9KW/2450
39 Rated Torque / r.p.m. N·m 193Nm/1800 184.7Nm/1700
40 No.of Cylinder 4 4
41 Bore x Stroke mm 98×105 95.4×107
42 Displacement L 3.167 3.059
43 Fuel Tank Capacity L 80
44 Transmission Type YQXD40
45 Transmission Stage (FWD/RVS) 1/1
46 Operating Pressure (For Attachments) Mpa 18.5
