N Series 1.5T-1.8T Diesel Forklift

After many years’ improving and upgrading, 1.5T-mini 5.0T diesel forklift has become one of the best in China. It adopts leading design, manufacturing technology and reliable power train and hydraulic systems.

All models have been tested by the market that they can be trusted for all industries and get recognition from millions of clients across the worldwide.

Product Introduction

Reliability & Performance
● Scientific design and manufactured truck body combines superior power train makes the forklift outstanding in performance and operation. The power train includes the well-known engines like Isuzu, Mitsubishi, Yanmar, Kubota, Xinchai and Japanese level technology transmission.
● Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensures the high lifting and steering speed.
● Advanced Cooling technology matching with large capacity radiator makes sure the forklift can work well even in hot area.

Diesel Forklift 1.5t – 3.5t Main Specifications

General 1 Importer EES
2 Model FD15T FD18T FD20T FD25T FD30T FD35T
3 Power Type Diesel Diesel Diesel Diesel Diesel Diesel
4 Rated Load Capacity Q(kg) 1500 1800 2000 2500 3000 3500
5 Load Centre C(mm) 500 500 500 500 500 500
Characteristic & Dimension 6 Rated Lift Height H3(mm) 3000 3000 3000 3000 3000 3000
7 Free Lift Height H2(mm) 100 100 100 100 100 100
8 Fork Size (LxWxT) mm 920x120x35 920x120x35 1070x120x40 1070x120x40 1070x125x45 1070x125x45
9 Mast Tilt Angle (F/R, a°/β°) deg 6°/12° 6°/12° 6°/12° 6°/12° 6°/12° 6°/12°
10 Fork Overhang (Wheel Center to Fork Face) X1(mm) 409 409 479 479 484 484
11 Rear Overhang X2(mm) 470 470 520 520 595 635
12 Ground Clearance (Bottom of Mast) H7(mm) 110 110 130 130 145 145
13 Length to Face of Fork (Without Fork) L1(mm) 2285 2285 2660 2660 2700 2775
14 Overall Width B1(mm) 1082 1082 1150 1150 1225 1225
15 Mast Lowered Height H1(mm) 2025 2025 2055 2055 2070 2070
16 Mast Extended Height (With Backrest) H4(mm) 4055 4055 4070 4070 4070 4070
17 Overhead Guard Height H5(mm) 2160 2160 2215 2215 2235 2235
18 Turning Radius (Outside) Wa(mm) 2100 2100 2365 2365 2425 2500
19 Min Aisle width for pallets mm 3700 3700 4120 4120 4180 4255
Performance 20 Travel Speed (No Load) km/h 14.5 14.5 19 19 19 19
21 Lifting Speed (Full Load) mm/sec 560 560 510 510 430 400
22 Lowering Speed (Full Load) mm/sec 450 450 450 450 450 450
23 Max.Drawbar Pull (Full Load/No Load) KN 17(14.5) 17(14.5) 17(14.5) 17(14.5) 16(15.7) 16(15.7)
24 Max.Gradeability (Full Load) % 20 20 20 20 20 20
Tyre 25 Tyre (Front x 2) mm 6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR 28×9-15-12PR
26 Tyre (Rear x 2) mm 5.00-8-10PR 5.00-8-10PR 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Weight 27 Total Weight kg 2860 2990 3385 3605 4460 4775
28 Front Axle Weight Distribution (Full Load) kg 3815 4120 4846 5494 6714 6997
29 Rear Axle Weight Distribution (Full Load) kg 545 720 538 610 746 777
30 Front Axle Weight Distribution (No Load) kg 1200 1170 1354 1442 1784 1910
31 Rear Axle Weight Distribution (No Load) kg 1660 1820 2031 2163 2676 2865
Power & Transmission 32 Battery V/Ah 12/90 12/90 12/90 12/90 12/90 12/90
33 Fuel Tank Capacity L 50 50 50 50 50 50
34 Operating Pressure (For Attachments) Mpa 14.5 14.5 17.5 17.5 17.5 17.5

Safety & Ergonomics
● OPS, Seat switch ensures a safe operation.
● Wide view mast can always give operator a good visibility.
● Strong OHG protects the operator from any falling objects.
● Suspension cabin with large foot space, adjustable steering wheel and comfortable seat.
● Power train suspension is available as option.

Easy Maintenance

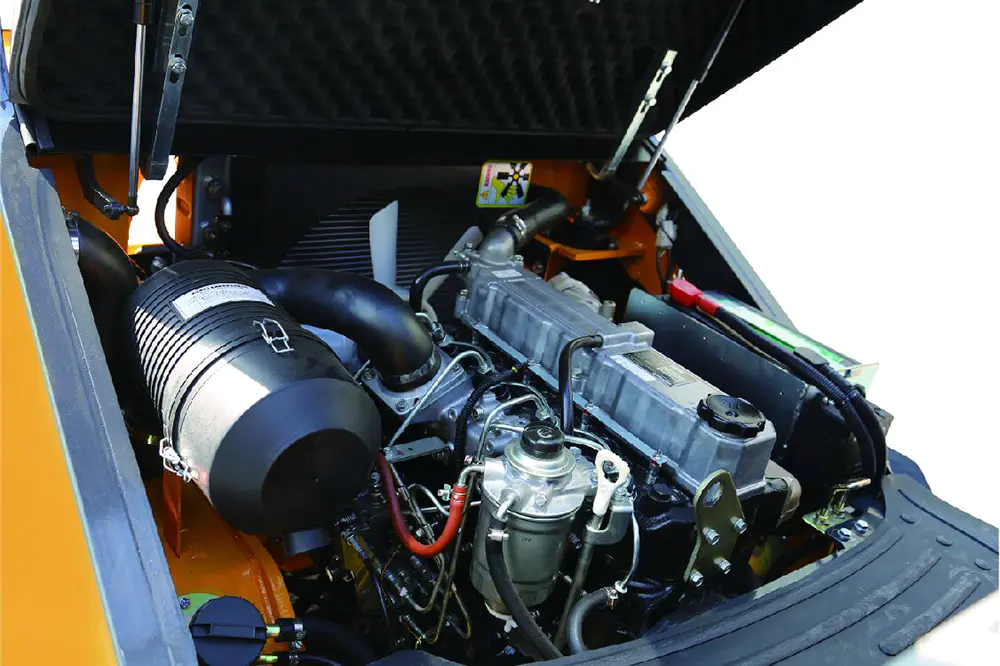

● Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly.
● Convenient replace of transmission oil filter.
