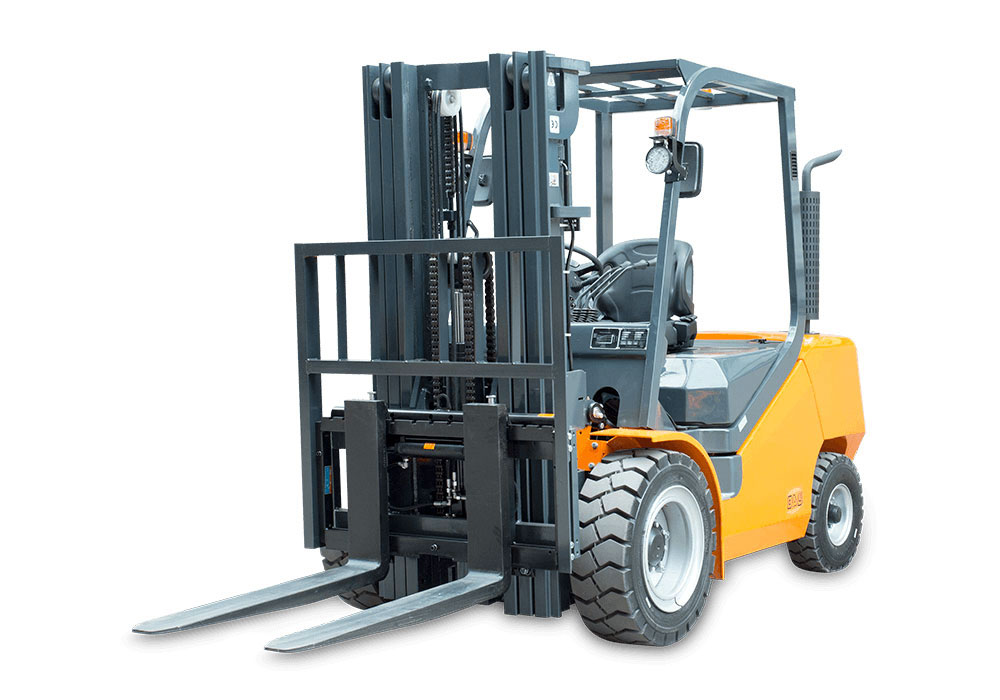

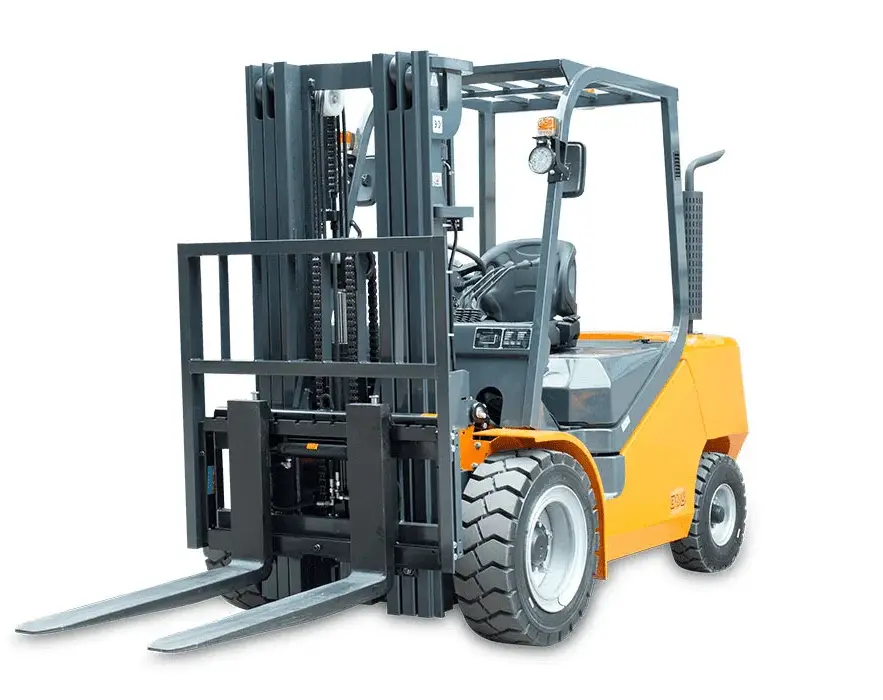

N Series 4.0T-Mini5.0T LPG & Gasoline Forklift
After many years’ improving and upgrading, 1.5T-mini 5.0T LPG/Gasoline forklift has become one of the best. It adopts leading design, manufacturing technology and reliable power train and hydraulic systems.
All models have been tested by the market that they can be trusted for all industries and get recognition from millions of clients across the worldwide.
Technical Data
| Model | FGL40T | FGL45T | FGL50T |
|---|---|---|---|
| Power Type | LPG | LPG | LPG |
| Rated Load Capacity Q(kg) | 4000 | 4500 | 5000 |
| Load Centre C(mm) | 500 | 500 | 500 |
| Rated Lift Height H3(mm) | 3000 | 3000 | 3000 |
| Free Lift Height H2(mm) | 84 | 84 | 84 |
| Fork Size (L×W×T) mm | 1070×150×50 | 1070×150×50 | 1070×150×50 |
| Mast Tilt Angle (F/R, α°/β°) deg | 6°/12° | 6°/12° | 6°/12° |
| Fork Overhang (Wheel Center to Fork Face) X1(mm) | 578 | 578 | 578 |
| Rear Overhang X2(mm) | 550 | 570 | 614 |
| Ground Clearance (Bottom of Mast) H7(mm) | 175 | 175 | 175 |
| Length to Face of Fork (Without Fork) L1(mm) | 3091 | 3091 | 3125 |
| Overall Width B1(mm) | 1485 | 1485 | 1485 |
| Mast Lowered Height H1(mm) | 2260 | 2260 | 2260 |
| Mast Extended Height (With Backrest) H4(mm) | 4266 | 4266 | 4266 |
| Overhead Guard Height H5(mm) | 2260 | 2260 | 2260 |
| Turning Radius (Outside) Wa(mm) | 2790 | 2790 | 2830 |
| Min.Aisle width for pallets Ast(mm) | 4640 | 4640 | 4680 |
| Travel Speed (No Load) km/h | 22/20 | 22/20 | 22/20 |
| Lifting Speed (No Load/Full Load) mm/sec | 450 | 450 | 430 |
| Lowering Speed (No Load/Full Load) mm/sec | 480 | 480 | 480 |
| Max.Drawbar Pull (Full Load) KN | >21 | >21 | >21 |
| Max.Gradeability (Full Load) % | ≥20% | ≥20% | ≥20% |
| Tyre (Front x 2) mm | 300-15-18PR | 300-15-18PR | 300-15-18PR |
| Tyre (Rear x 2) mm | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR |
| Front Tread B2(mm) | 1180 | 1180 | 1180 |
| Rear Tread B3(mm) | 1190 | 1190 | 1190 |
| Wheelbase Y(mm) | 2000 | 2000 | 2000 |
| Total Weight kg | 6600 | 6800 | 7100 |
| Front Axle Weight Distribution (Full Load) kg | 9010 | 9750 | 10500 |
| Rear Axle Weight Distribution (Full Load) kg | 1590 | 1550 | 1600 |
| Front Axle Weight Distribution (No Load) kg | 2750 | 2710 | 2680 |
| Rear Axle Weight Distribution (No Load) kg | 3850 | 4090 | 4420 |
| Battery V/Ah | 24/80 | 24/80 | 24/80 |
| Engine Model | PSI4.3 | PSI4.3 | PSI4.3 |
| Engine Manufacturer | PSI | PSI | PSI |
| Rated Output / r.p.m. kw | 63/2000 | 63/2000 | 63/2000 |
| Rated Torque / r.p.m. N·m | 298/1200 | 298/1200 | 298/1200 |
| No.of Cylinder | 6 | 6 | 6 |
| Bore x Stroke mm | 101.6×88.4 | 101.6×88.4 | 101.6×88.4 |
| Displacement L | 4.294 | 4.294 | 4.294 |
| Fuel Tank Capacity L | 90 | 90 | 90 |
| Transmission Type | Powershift | Powershift | Powershift |
| Transmission Stage (FWD/RVS) | 2/1 | 2/1 | 2/1 |
| Operating Pressure (For Attachments) Mpa | 17 | 17 | 17 |
