E 1.5 modular
- WATER RESEARCH
- GEOLOGICAL FINDINGS
- CORE DRILLING
The E 1.5 modular hydraulic drill rig, mounted on a skid, offers a compact footprint combined with high power—making it an ideal solution for water well exploration, geological surveys, and core drilling operations in all types of soil.
Designed for maximum versatility, the E 1.5 operates efficiently with all rotary drilling systems using direct fluid circulation. It supports various drilling methods, including rotation with rock bit (nucleus destruction), down-the-hole hammer drilling, and specialized core equipment. With a broad range of optional features, the rig can be tailored to meet specific customer requirements and project needs, ensuring optimal performance and adaptability in the field
Technical Data
| Model | E 1.5 |
|---|---|
| DRILLING CAPACITY | Hole diameter 3”/ 6” ( 76-150 mm ) Depth 50 m and more |
| MAST | Height 2 – 3,5 m Working stroke 1 – 2,4 m Drilling pipes length 3/6 mt |
| MAST EXTENSION | For 3 m rods |
| PULL – DOWN | Pull 1,5 tons Thrust 1,5 tons |
| ROTARY HEAD | Max torque 400 Kgm Max speed 600 rpm 4 gears Sliding shaft for DTH hammer |
| AUXILIARY ENGINE | Diesel 30-40 cv |
| HYDRAULIC WINCH (Optional) | Pull 600 kg |
| CLAMP (many different choices) | Max diameters 80/200 mm |
| MUD PUMP (optional) | Screw or centrifugal type with 300 Lt/min |
| FOAM / WATER PUMP (optional) | Capacity 80 lt/min – max pressure 50 bar |
| TOTAL WEIGHT | Kg 600 |

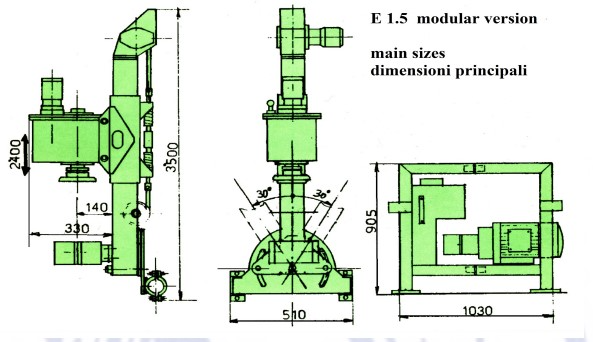

Dimensional Data
