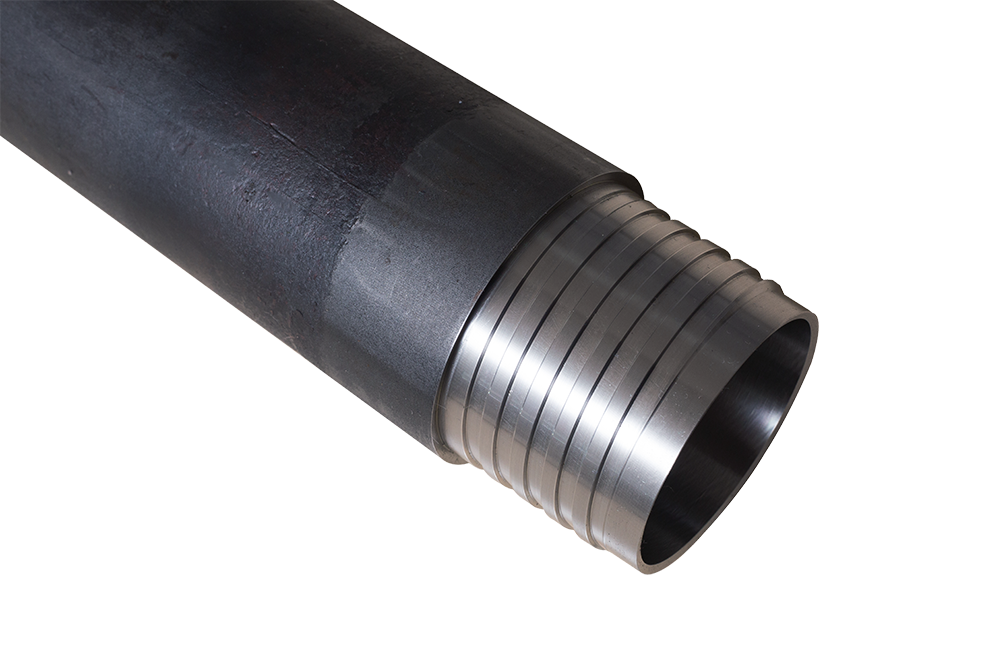

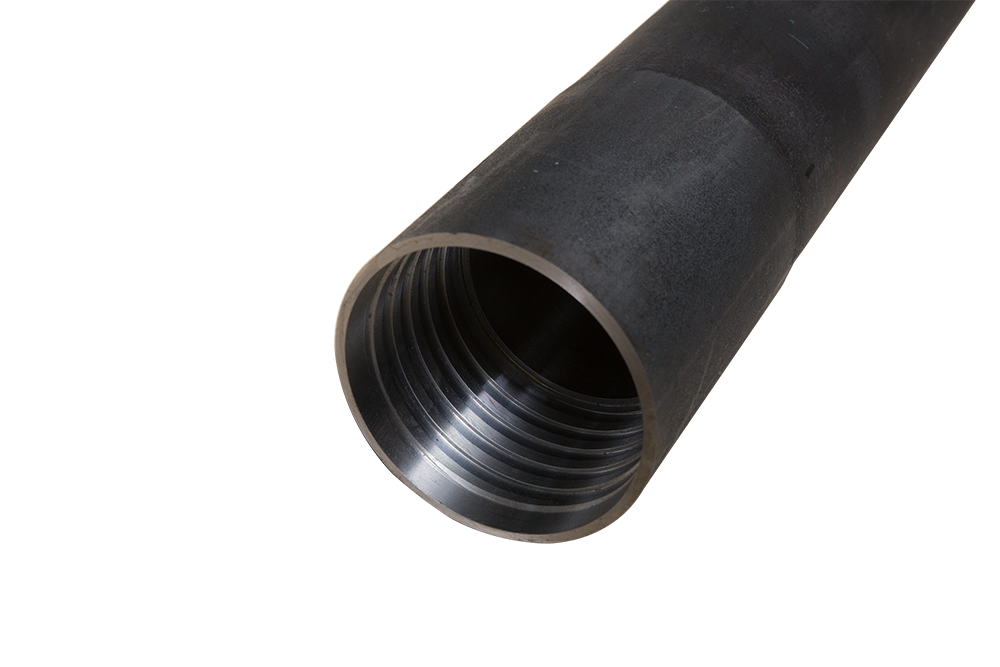

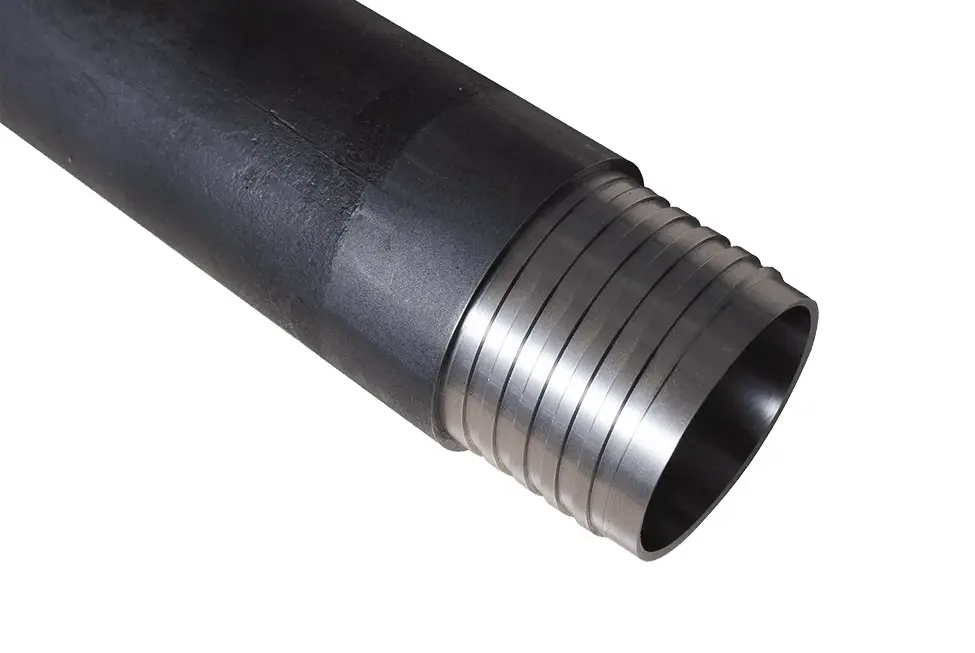

TW QV Series Thin-wall Rods
The TW QV Series Thin-Wall Rods are precision-engineered for diamond core drilling applications requiring high strength, reduced weight, and efficient core recovery. Manufactured from high-grade alloy steel, these rods feature a thin-wall design that minimizes annular space, enhances flushing efficiency, and reduces drilling resistance—making them ideal for deep hole drilling and challenging ground conditions.
Designed for compatibility with standard Q-series tooling, the TW QV rods ensure a tight, secure connection and long service life even under demanding operational conditions.
| Model | TW Series | ||||
|---|---|---|---|---|---|
| Std. | Length(m) | OD*WT(mm) | Grade | Depth(m) | |
| ATW | 1.5 | 44.5*3.85 | ZT850 | 300 | |
| BTW | 1.5 | 57.0*4.2 | ZT850 | 600 | |
| NTW | 1.5 | 73.2*4.45 | ZT850 | 1800 | |
| QW Series | |||||
| NHD | 3.0 | 73.0*4.75 | ZT850 | 1200 | |
| HQV | 3.0 | 91.0*5.0 | ZT850 | 1200 | |
| Code | Name | Net weight / root（kg） | Root number / bundle | Gross weight / bundle（kg） | Length * width * height(mm) |
| RC-ATW-1500 | 1.5M,ATW drill pipe | 5.79 | 100 | 610 | 1600*550*550 |
| RC-BTW-1500 | 1.5M,BTW drill pipe | 8.20 | 100 | 860 | 1600*680*680 |
| RC-NTW-1500 | 1.5M,NTW drill pipe | 11.32 | 60 | 730 | 1600*840*540 |
| RC-NQV-3000 | 3M,NQV drill pipe | 23.99 | 60 | 1550 | 3100*835*540 |
| RC-HQV-3000 | 3M,HQV drill pipe | 31.81 | 40 | 1320 | 3100*835*555 |
