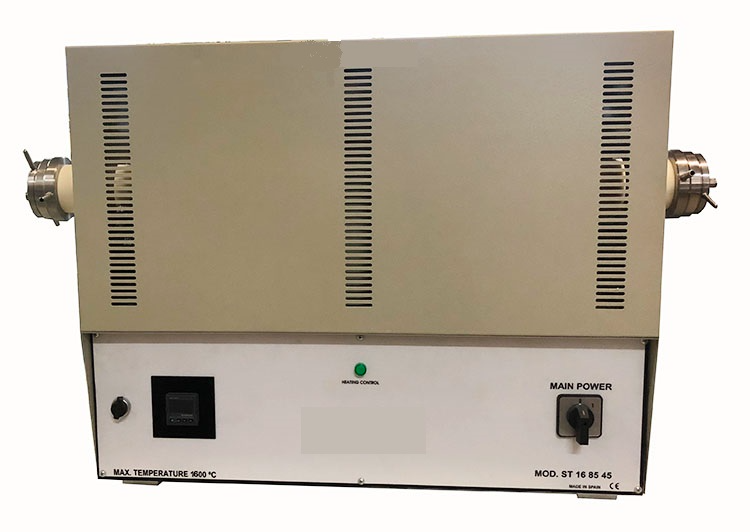

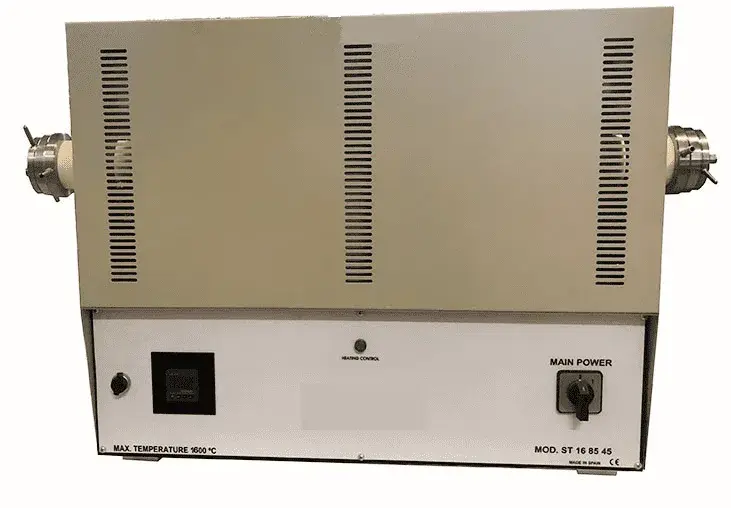

High-performance horizontal tube furnaces designed for demanding thermal processes under various controlled atmospheres, including oxidizing, inert (N₂, Ar, O₂, H₂), and vacuum/high vacuum conditions.

• Temperature Range:

  • Up to 1,600 °C with Kanthal® SiC

  • 1,600–1,900 °C with SuperKanthal® (MoSi₂) heating elements

• Insulation: High-efficiency ceramic fiber (M160, M180, M190)

• Custom Configurations: Variable heating lengths and tube diameters

• Heating Zones: 1 to 4 independent zones for superior temperature uniformity

• 24/7 Operation: Built for continuous industrial use

• Advanced Control: 64-step ramp/soak programmable controller

• Optimized Design: Heating elements positioned symmetrically around the tube
