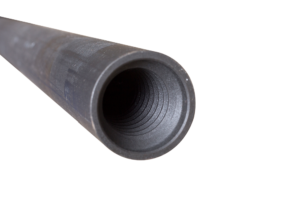

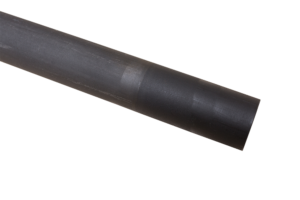

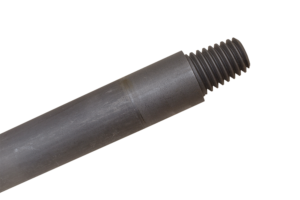

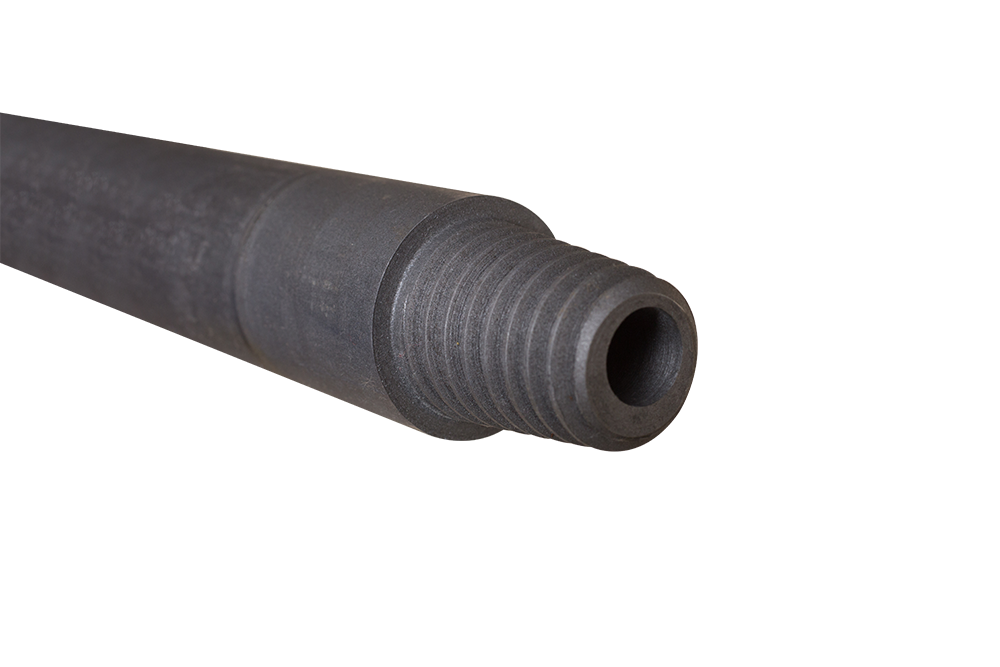

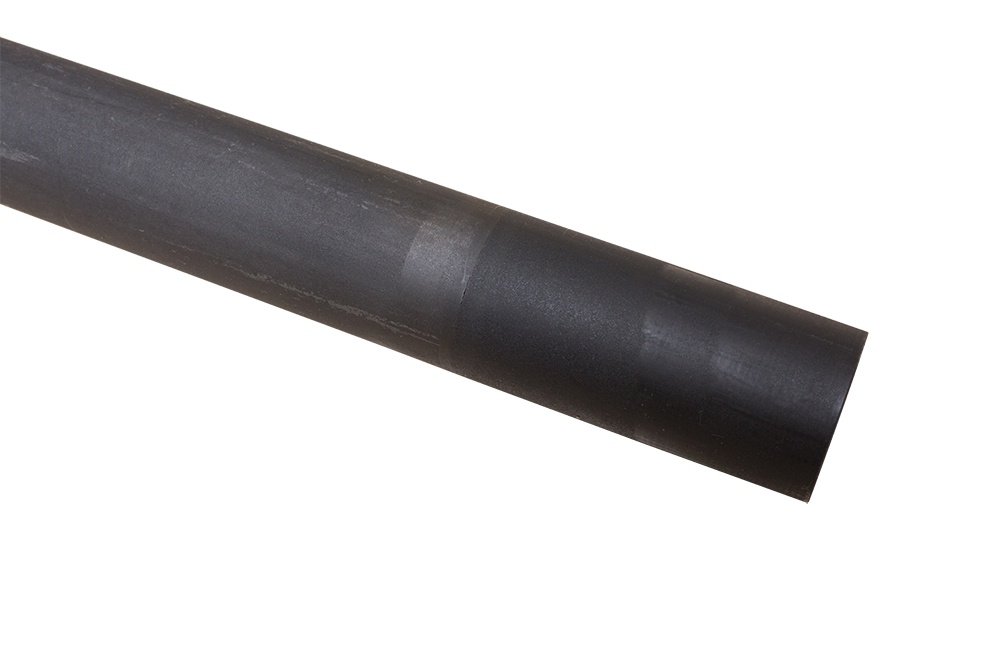

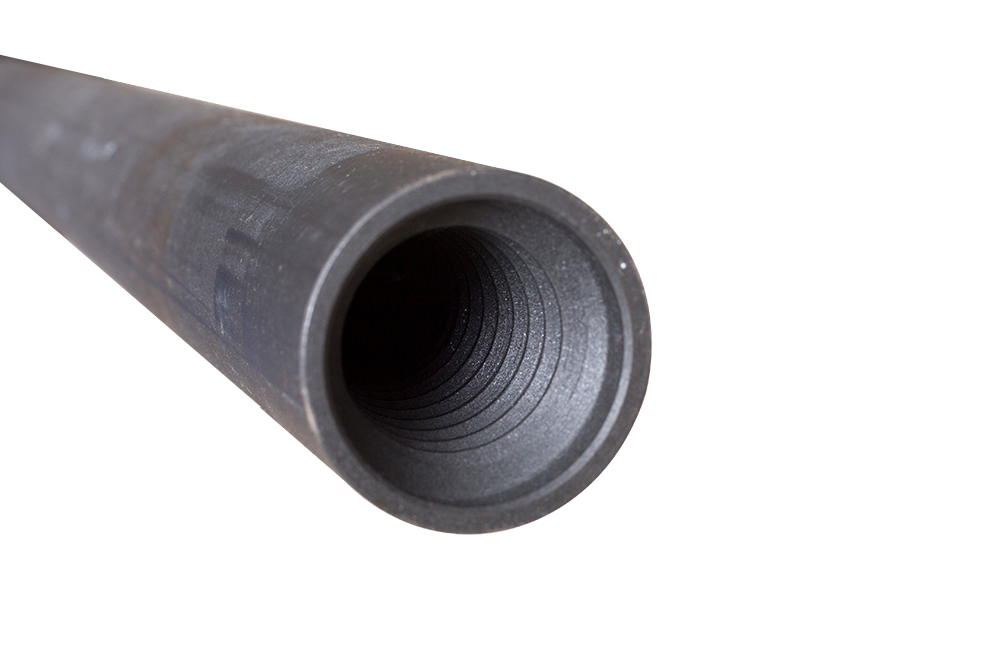

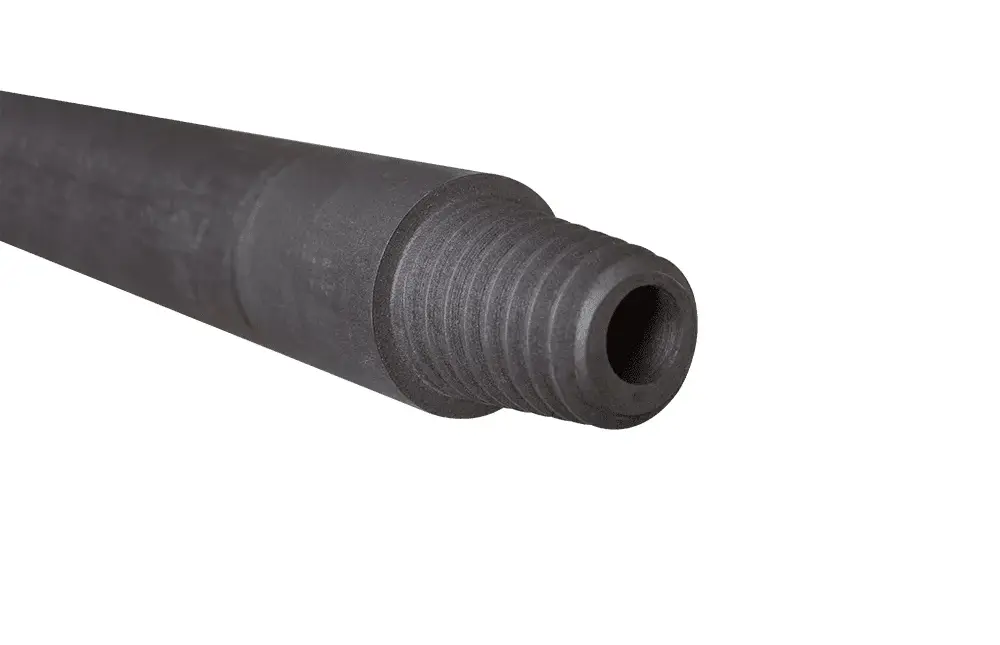

Regular rod

Regular rods are standard core drilling components designed for strength, durability, and reliable performance in a wide range of drilling conditions. Manufactured from high-quality alloy steel, they offer excellent thread integrity and resistance to wear, making them suitable for both surface and underground drilling operations.

Engineered for compatibility with conventional drilling systems, regular rods provide smooth coupling and efficient torque transmission—ensuring stability and long service life during coring or exploration projects.

Technical Data

Std.Length(m)Rod OD*WT(mm)Thread TypeConnect MethodGrade
AWJ 1.544.5*4.8trigonometric taper threadthickening, direct connect ZT750
AWJ 3.044.5*4.8trigonometric taper threadthickening, direct connect ZT750
BWJ1.554.0*4.8trigonometric taper threadthickening, direct connect ZT750
BWJ3.054.0*4.8trigonometric taper threadthickening, direct connect ZT750
NWJ1.566.7*5.0trigonometric taper threadthickening, direct connect ZT750
NWJ3.066.7*5.0trigonometric taper threadthickening, direct connect ZT750
