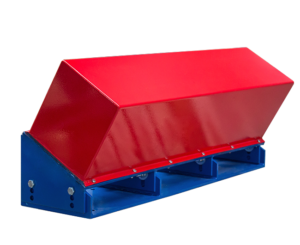

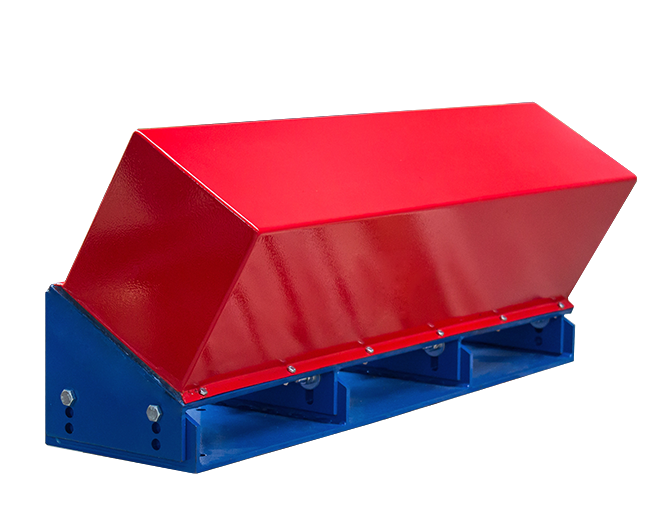

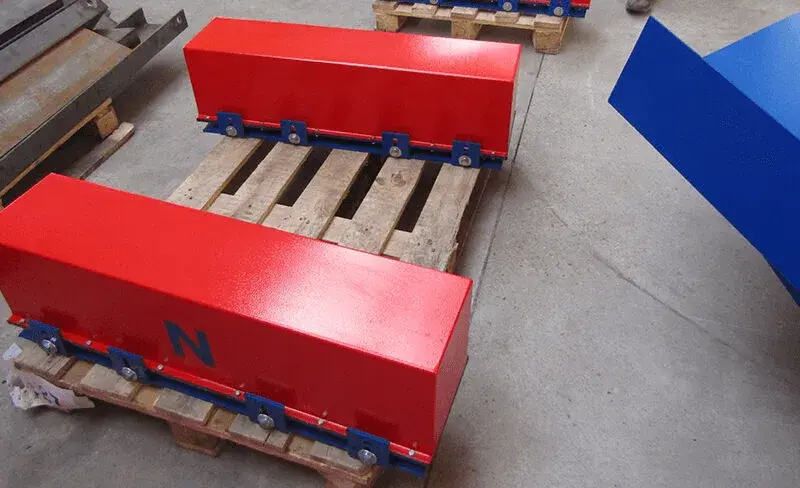

PSM-VO magnetic bracket

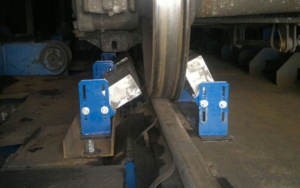

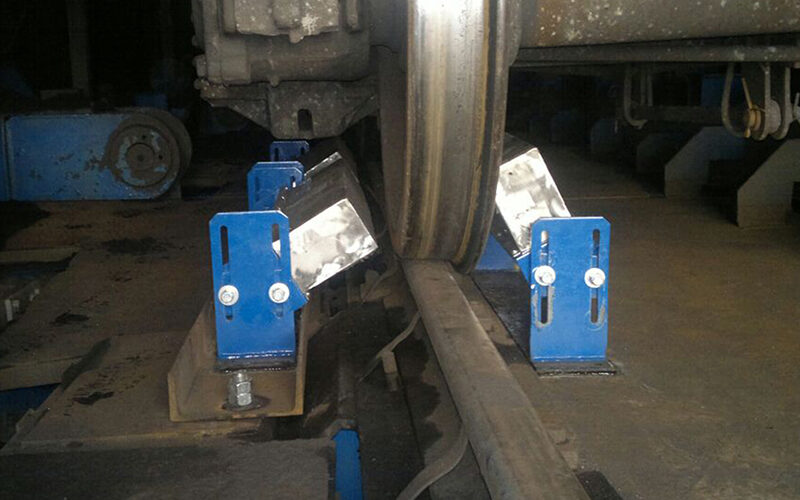

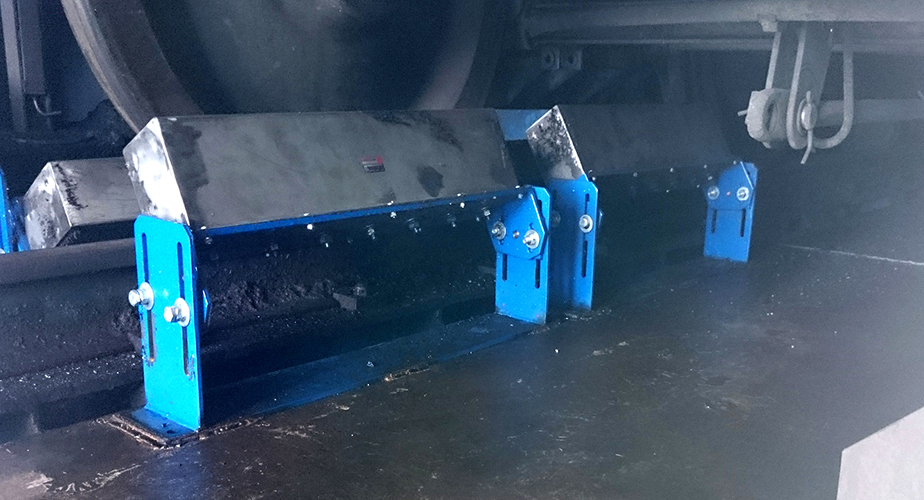

PSM-VO brackets secure brake shoe cotter pins during bulk material unloading, preventing pin loss and ensuring safe, uninterrupted operation.
-
Strong NdFeB Magnets: Hold pins in place during tipping to prevent brake failure.
-
Improves Safety: Reduces equipment wear and rail traffic risks.
-
Tool-Free Operation: Automatically holds pins—no manual handling required.
-
Adjustable & Easy to Install: Bolt-mounted with adjustable height.
-
Proven Performance: 14× fewer lost pins in field trials.
Ideal for use in energy, metallurgy, construction, and port facilities.
Technical Data
| Model | PSM-VO |
|---|---|
| Dimensions, LxWxH, mm | 1920х790х393 |
| Operating zone width, mm | 1900 |
| Magnetic system type | Compound based on NdFeB alloy |
| Induction at 140мм from magnetic block surface, min, mT | 65 |
| Cotter pin holding effect, min., % | 80 |
| Max. mass, kg | 1200 |
