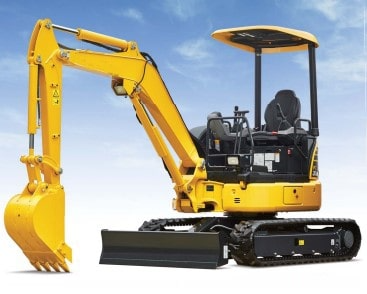

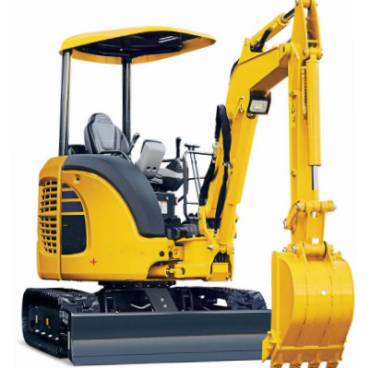

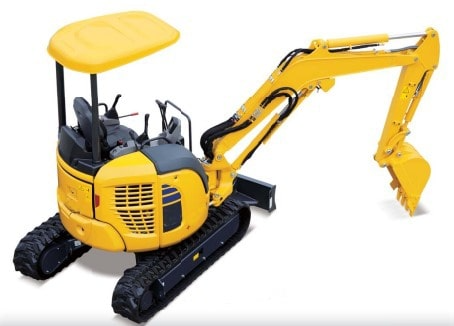

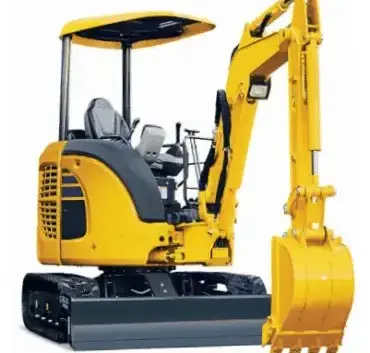

PC35MR-5 Excavator
- WATER RESEARCH
- GEOLOGICAL FINDINGS
- MINING RESEARCH
- CORE DRILLING
Powered by a new-generation Komatsu engine, the PC35MR-5 is a tough, compact excavator built for tight spaces—perfect for rental fleets, owner-operators, builders, plumbers, electricians, and other trades.
It features advanced technology and component integration found in larger Komatsu machines, ensuring durability and performance. Equipped standard with Komtrax remote monitoring, it delivers reliability where you need it most.
Technical Data
| Model | PC35MR-5 |
|---|---|
| Boom Length | 2285 mm 2540 mm |
| Arm Length | 1240 mm 1370 mm |
| Maximum digging height | 4840 mm 5000 mm |
| Maximum dumping height | 3350 mm 3530 mm |
| Maximum digging depth | 2760 mm 3110 mm |
| Maximum vertical wall digging depth | 2400 mm 2690 mm |
| Maximum digging reach | 5050 mm 5300 mm |
| Maximum digging reach at ground | 4910 mm 5170 mm |
| Minimum swing radius (When boom swing) | 2055 (1560) mm 2030 (1600) mm |
| Maximum blade lift | 360 mm |
| Maximum blade depth | 310 mm 390 mm |
| Bucket digging force | 29.5 kN 3000 kg 29.9 kN 3050 kg |
| Arm crowd force | 17.7 kN 1800 kg 20.6 kN 2100 kg |

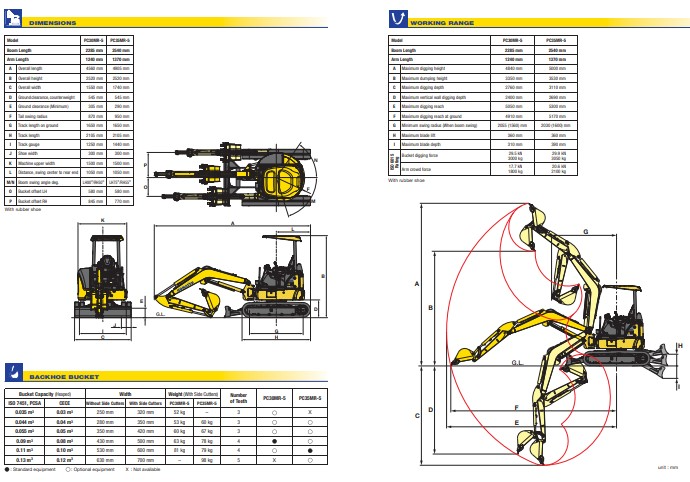

Dimensional Data
