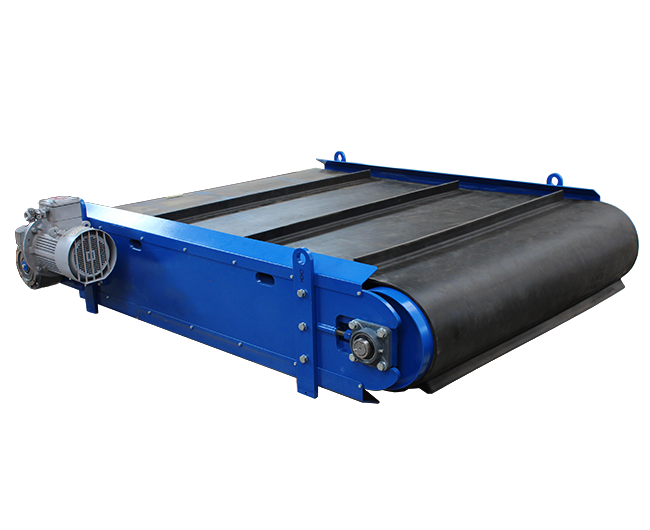

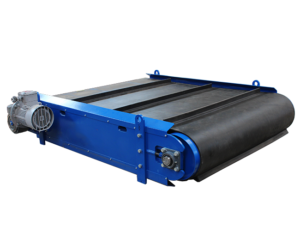

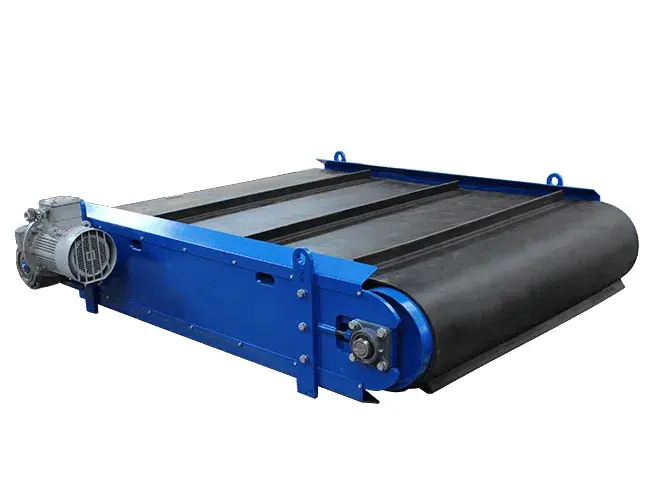

Overbelt self-cleaning magnetic separator
SuspendMag A is a high-performance overbelt magnetic separator designed for municipal solid waste (MSW) sorting lines. It ensures efficient metal recovery and automatic discharge of magnetic material.
-
Extended Magnetic System: Captures large ferrous items (up to 30 kg) from distances up to 350 mm and efficiently ejects them beyond the conveyor.
-
Automatic Self-Cleaning: Continuous, maintenance-free cleaning—no operator needed.
-

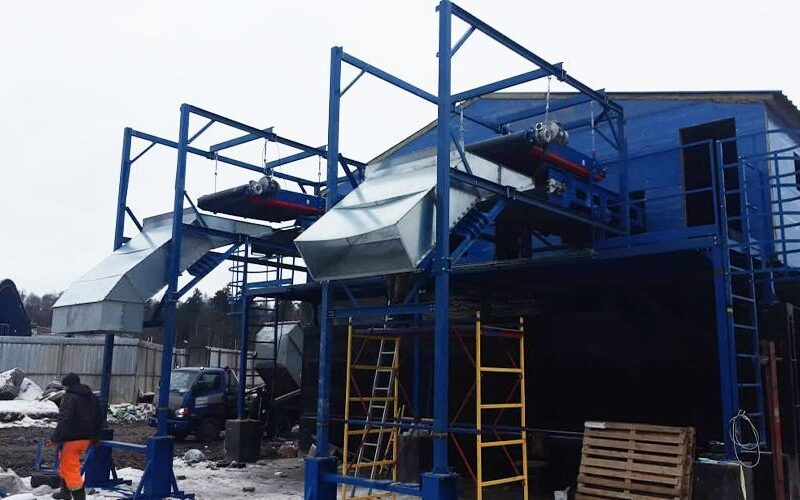

Easy Integration: Installs inline with existing sorting systems; supports both longitudinal and transverse configurations.
-

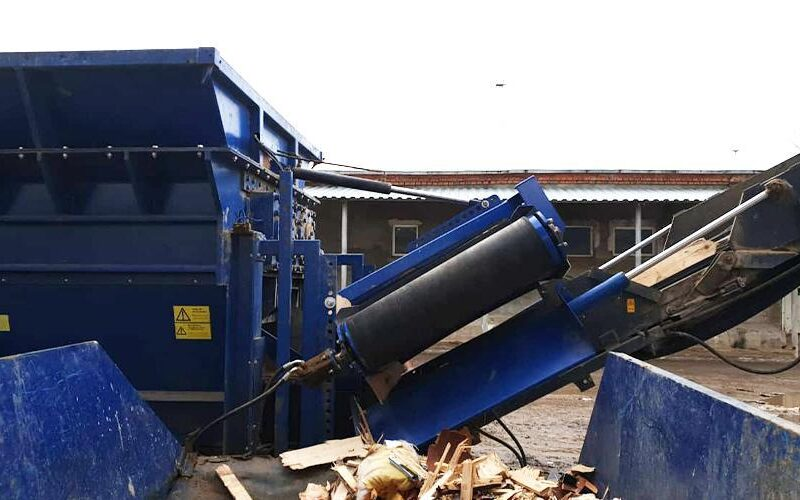

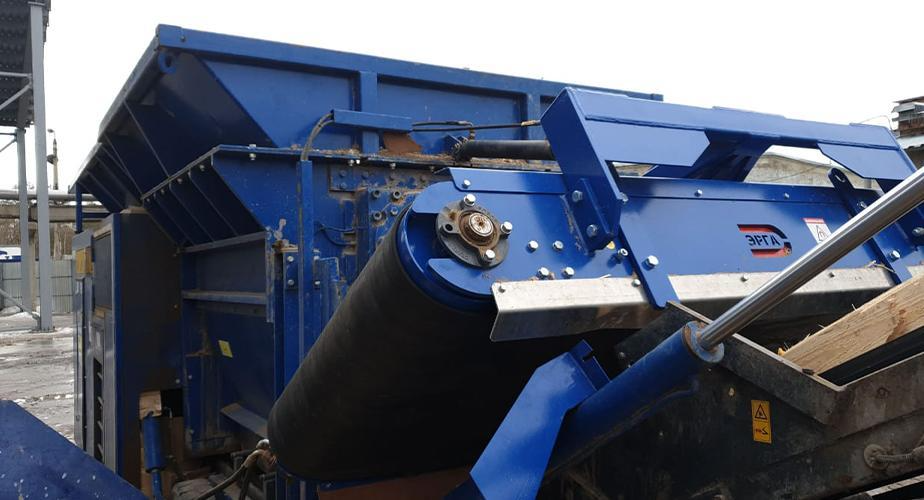

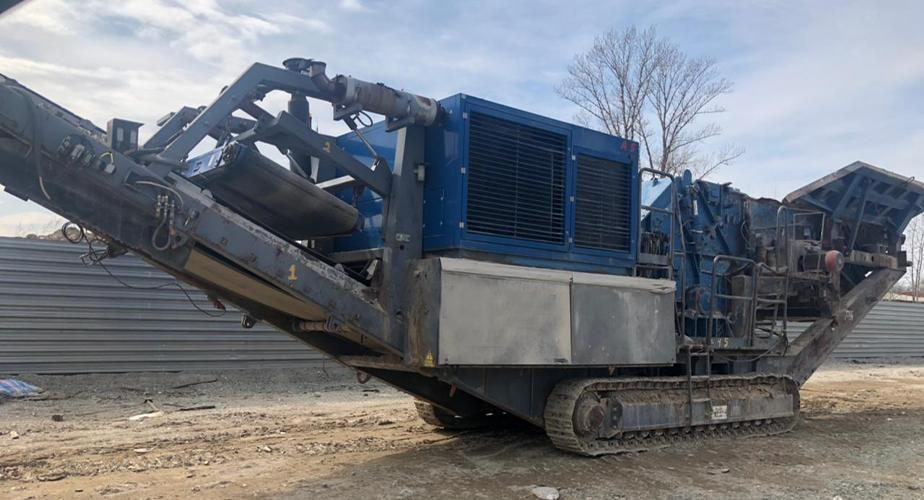

Mobile Equipment Compatibility: Available with hydraulic drive for use on mobile shredders and crushers. Custom mounting options based on machine specs.
-
Certified & Safe: Complies with industrial safety standards for use in hazardous environments. Certifications included.
Technical Data
| Model | SuspendMag A 1000 for MSW | SuspendMag A 1200 for MSW | SuspendMag A 1400 for MSW |
|---|---|---|---|
| Operating width of magnetic system, mm | 1000 | 1200 | 1400 |
| Removal area depth *, mm | up to 350 | up to 350 | up to 350 |
| Electric motor power, kW | 3 | 3 | 3 |
| Machine weight, kg | 2000 | 2300 | 2500 |
