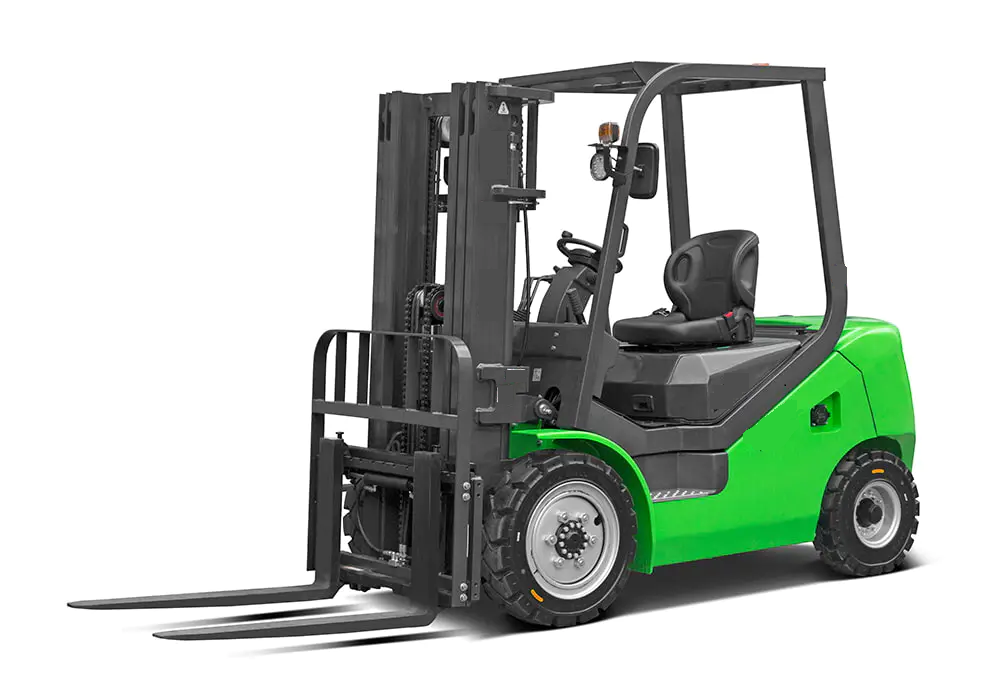

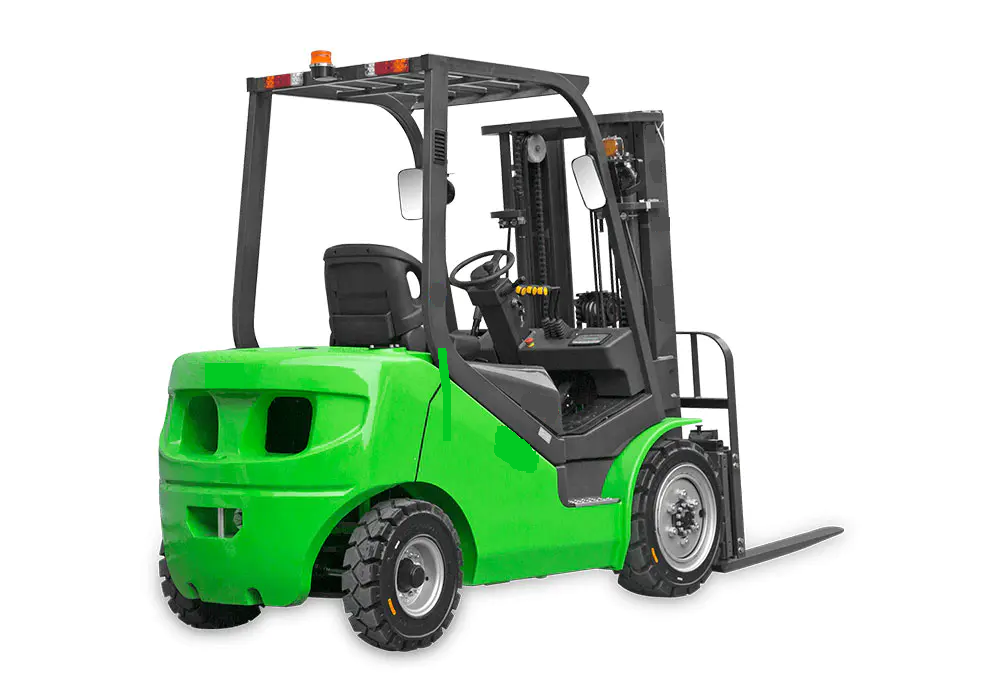

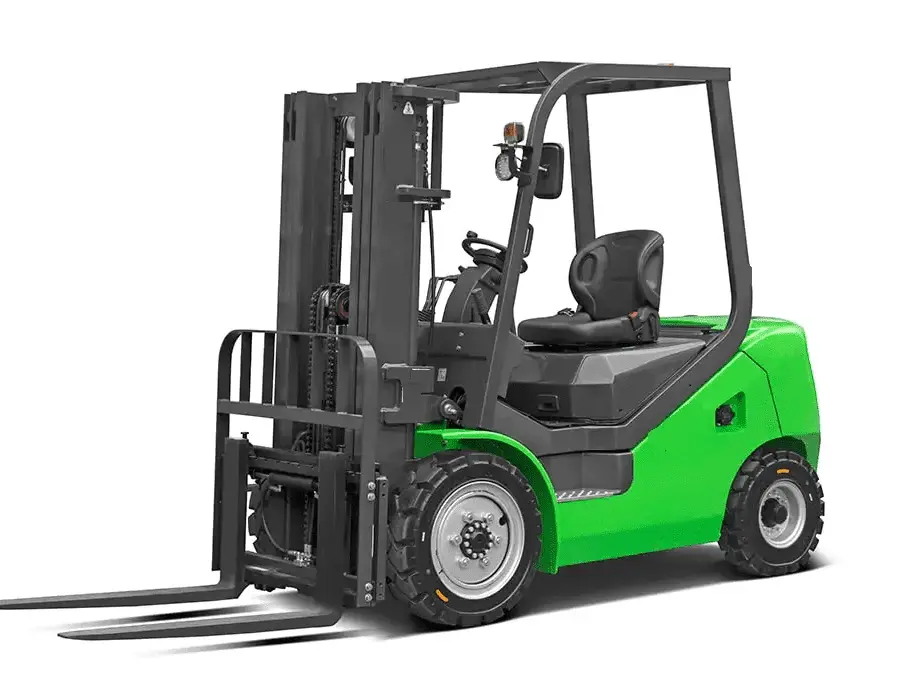

NL Series 2.0T-3.5T Li-ion Battery Forklift

The NL series new lithium battery forklift, capacity from 2,000 to 3,500kg, adopts UN internal combustion forklift ‘s design with the strong chassis, frame, counterweight and mast.

The power structure is designed to adopt UN electric forklift’s concept, which use full AC system, Italian imported ZAPl controller, BMS control system and high quality lithium battery.

This combination of IC forklift and electric forklift makes an ideal solution to reach customers’ satisfaction on cost saving and environmental friendly.

Strong And Durable Chassis

Using the IC truck structures, which has been tested by the market for more than 20 years.
Inside the forklift, we use advanced lithium technology to ensure it’s working performance.

Long Term Performance

The battery can be charged and discharged 3500 times. With 5 years guarantee on lithium battery gives customers great satisfaction and long time life cycle

Eco - Friendly

Using low-carbon, clean, and environmental friendly lithium battery.
Lower noise, zero emission, and less vibration.

Lower Total Ownership Cost (TOC)

The purchase price is similar to a regular IC forklift . No fuel consumption cost , no maintenance fee for air filter, oil filter or engine oil changes compare to a regular IC forklift.

Multi-Scenario Usage

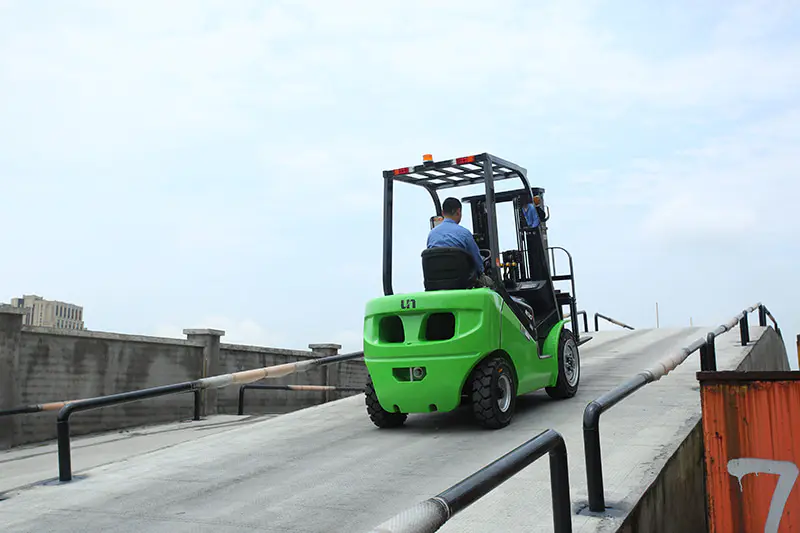

Adopting the IC forklift structures enable to operate indoors and outdoors, with great waterproof and dustproof performance.

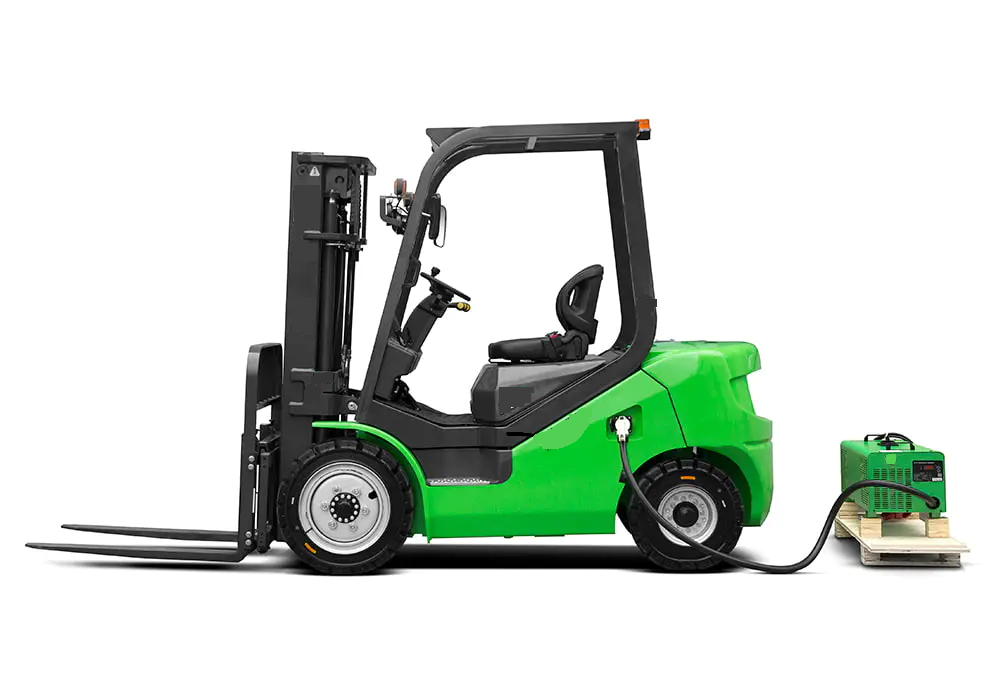

Fast Charging

Fully charge only needs 2 hours, and it can be charged at any time during the day to ensure multiple shifts.

Comfort and ergonomics

Owing to the low center of gravity and good stability, the driver feels comfortable during turning. Bigger leg space than standard Li-ion forklifts.

Easy Maintenance

Fully charge only needs 2 hours, and it can be charged at any time during the day to ensure multiple shifts.

Specifications

General	1	Model		FB20	FB25	FB30	FB35
	2	Rated Load Capacity	Q(kg)	2000	2500	3000	3500
	3	Load Centre	C(mm)	500	500	500	500
Characteristic & Dimension	4	Rated Lift Height	H3(mm)	3000	3000	3000	3000
	5	Free Lift Height	H2(mm)	100	100	100	100
	6	Fork Size (LxWxT)	mm	1070x120x40	1070x120x40	1070x125x45	1070x125x50
	7	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°
	8	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	479	479	484	484
	9	Rear Overhang	X2(mm)	520	520	595	635
	10	Ground Clearance (Bottom of Mast)	H7(mm)	130	130	145	145
	11	Length to Face of Fork (Without Fork)	L1(mm)	2660	2660	2700	2775
	12	Overall Width	B1(mm)	1150	1150	1225	1225
	13	Mast Lowered Height	H1(mm)	2055	2055	2070	2070
	14	Mast Extended Height (With Backrest)	H1(mm)	4070	4070	4070	4070
	15	Overhead Guard Height	H5(mm)	2215	2215	2235	2235
	16	Turning Radius (Outside)	Wa(mm)	2365	2365	2625	2500
	17	Min.Aisle width for pallets	Ast(mm)	4120	4120	4180	4255
Performance	18	Travel Speed (Full Load/No Load)	km/h	11/12	11/12	11/12	11/12
	19	Lifting Speed (Full Load/No Load)	mm/sec	260/380	260/380	250/360	220/340
	20	Lowering Speed (Full Load)	mm/sec	450	450	450	450
	21	Max.Gradeability (Full Load)	%	15	15	12	12
Chassis	22	Tyre (Front x 2)	mm	7.00-12-12PR	7.00-12-12PR	28×9-15-12PR	28×9-15-12PR
	23	Tyre (Rear x 2)	mm	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	24	Front Tread	B2(mm)	970	970	1000	1000
	25	Rear Tread	B3(mm)	980	980	980	980
	26	Wheelbase	Y(mm)	1650	1650	1700	1700
Weight	27	Total Weight	kg	3385	3605	4460	4775
	28	Front Axle Weight Distribution (No Load/Full Load)	kg	1354/4846	1442/5494	1784/6714	1910/6997
	29	Rear Axle Weight Distribution (No Load/Full Load)	kg	2031/538	2163/610	2676/746	2865/777
Power & Transmission	30	Battery	V/Ah	80V/150AH option 220AH option 270AH option 350AH	80V/175AH option 270AH option 350AH	80V/220AH option 270AH option 350AH	80V/270AH option 350AH
	31	Drive Motor	KW	10	10	10	10
	32	Lift Motor	KW	12	12	12	12
	33	Operating Pressure (For Attachments)	Mpa	17.5	17.5	17.5	17.5
