Mixers

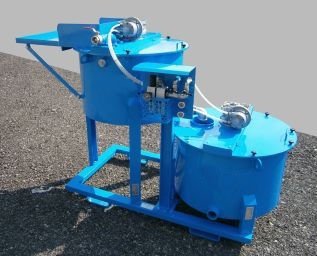

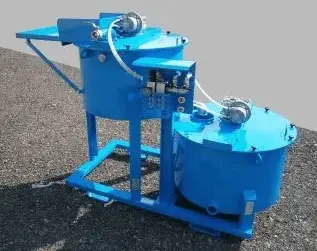

Mixers are constituted of two overlapping or offset tanks, according to requirements, made of sheet steel with internal deflectors, vertical shaft, loading plate with screen, tank cover and 1″1/2 discharging tap; mixers are electrically or pneumatically driven with reduction gear. They are generally assembled together with our AP, MP and DP series grout pumps.
Technical Data
| Mixer Overlapped | 5M | 5MA | - | - | - | - |
| Mixer Offset | - | - | MA140 | MA140A | MA200 | MA200A |
| Tank capacity Theoretical lt. | 220 x 2 | 220 x 2 | 140 x 2 | 140 x 2 | 220 x 2 | 220 x 2 |
| Tank capacity Working lt. | 200 x 2 | 200 x 2 | 120 x 2 | 120 x 2 | 200 x 2 | 200 x 2 |
| Shaft RPM | 96 | 96 | 60 | 60 | 60 | 60 |
| Electrical kW | 1,5 | - | 0,36 x 2 | - | 1,1 x 2 | - |
| Pneumatic k W | - | 3,6 | - | 1,1 x 2 | - | 1,1 x 2 |
