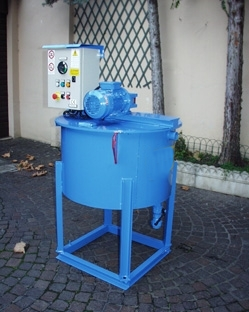

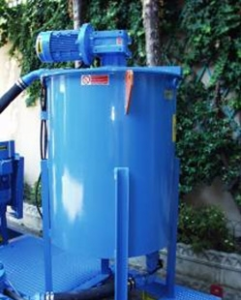

Agitators models are sheet metal made tanks with internal baffle plates, vertical shaft with blades, lids and drain cock. The transmission is generally constituted by a reduction gear installed at the top of the shaft and the powering can be electric, pneumatic, or hydraulic. Generally they are used in combination with turbo-mixers mod. TM.
| Model | Â Capacity | RPM vertical shaft |
Electric motor kWÂ |
Pneumatic motor kW |
|
| Total lt. | Working lt. | ||||
| A140 | 140 | 120 | 60 | 0.36 | – |
| A140A | 60 | – | 1.1 | ||
| A200 | 220 | 200 | 60 | 1.1 | – |
| A200A | 60 | – | 1.1 | ||
| A500R | 500 | 450 | 63 | 2.2 | – |
| A500RA | 63 | – | 3.6 | ||
| A750R | 810 | 750 | 63 | 3 | – |
| A750RA | 63 | – | 3.6 | ||
| A1000 | 1130 | 1000 | 63 | 3 | – |
| A1000 | 48 | – | 3.6 | ||
| A2200 | 2400 | 2200 | 63 | 3 | – |
